FOUNDRYEQUIPMENT

Complete foundry equipment solutions engineered for sand preparation, mould handling, metal pouring, casting, finishing and reliable production.

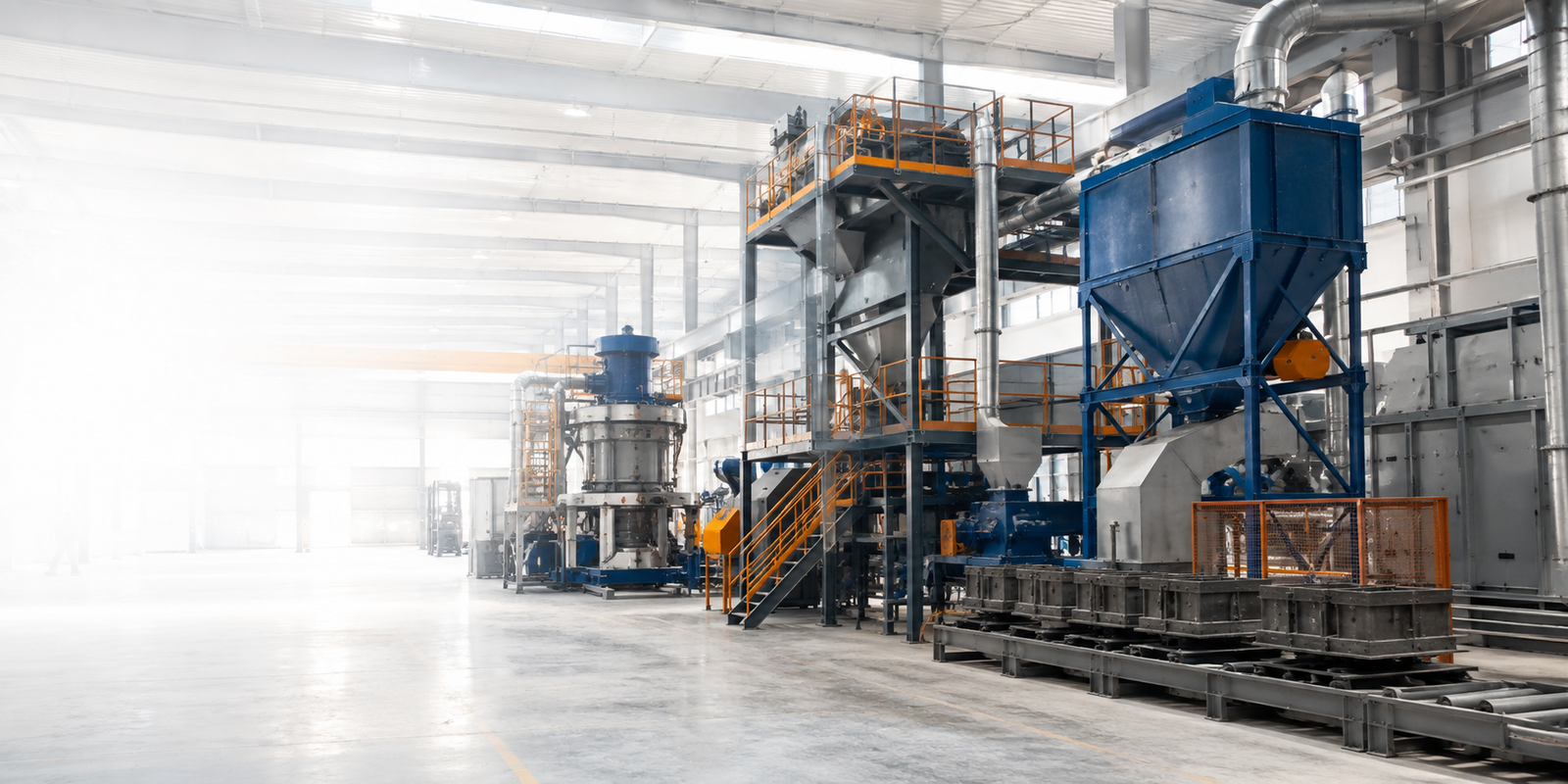

Modern foundry equipment manufacturing facility

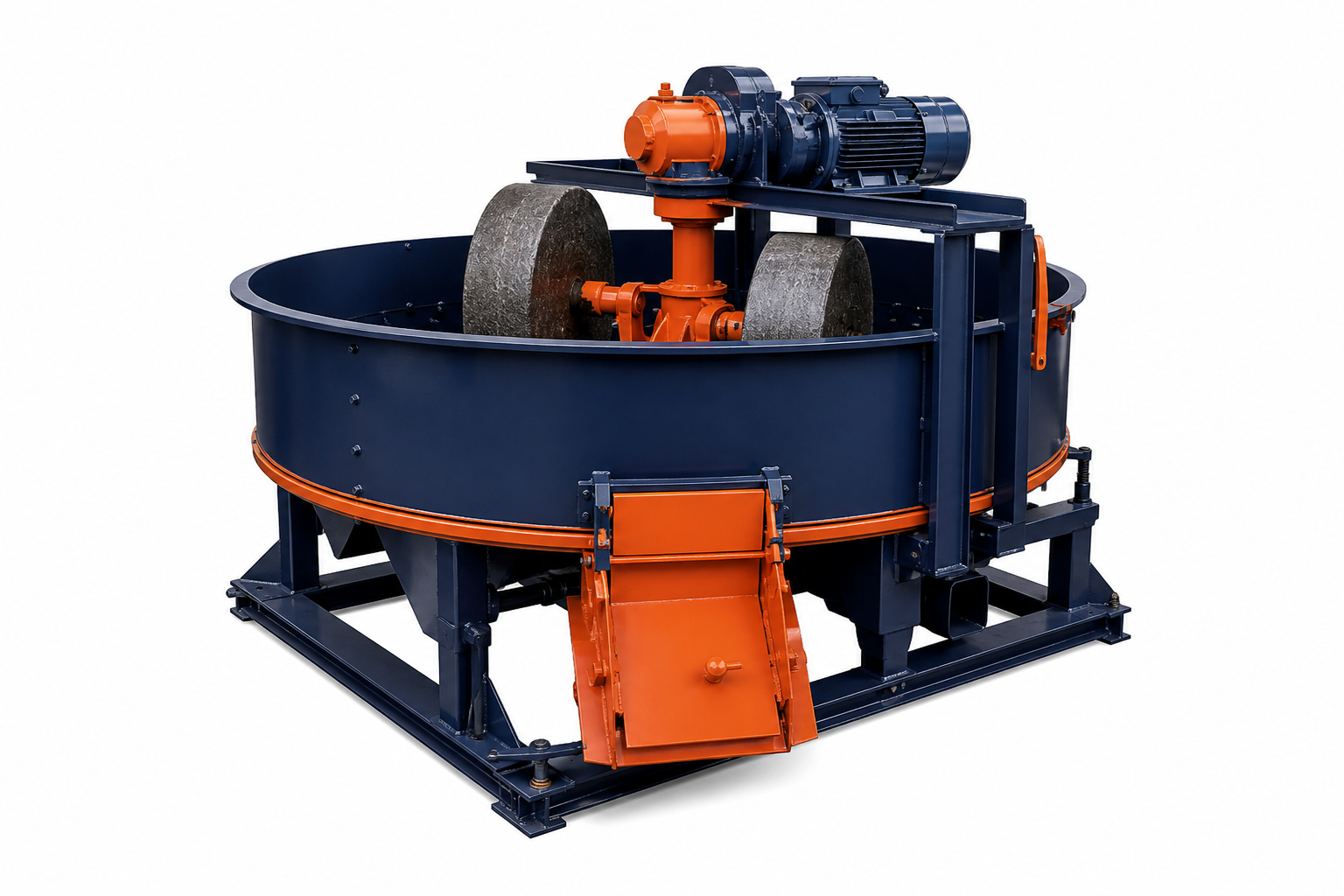

01sand mixer mullerSAND MIXER MULLERPowerful, uniform preparation of moulding sand.

SAND MIXER MULLER

Combines sand, binders and additives thoroughly through heavy-duty mulling action for consistent mould strength, controlled moisture and dependable foundry production.

  • Uniform Mixing
  • Robust Construction
  • High Output

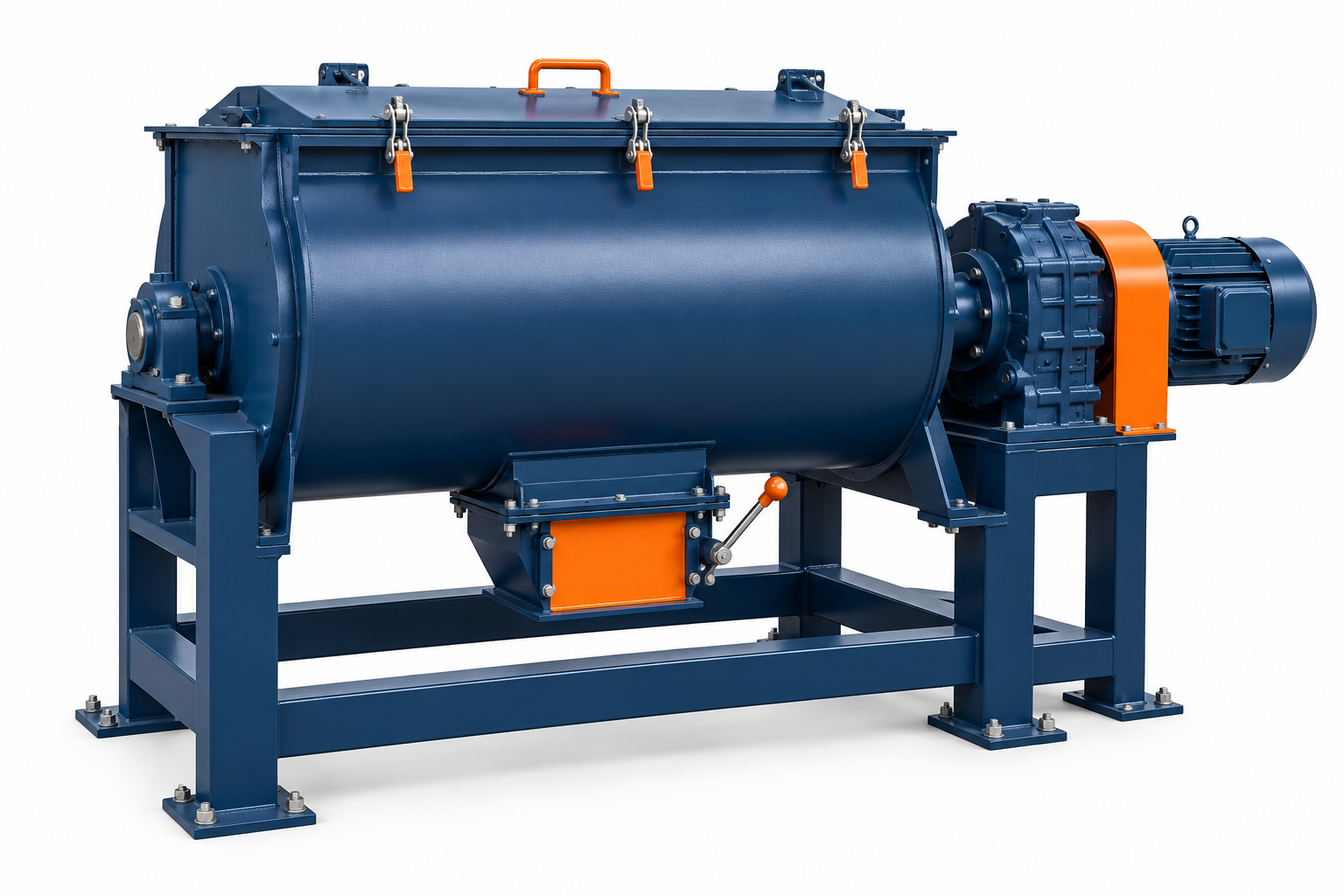

02core sand mixerCORE SAND MIXERConsistent preparation of precision core sand batches.

CORE SAND MIXER

Efficiently blends core sand with resins, binders and catalysts to produce homogeneous batches with repeatable properties and clean, controlled discharge.

  • Homogeneous Batches
  • Fast Mixing
  • Easy Discharge

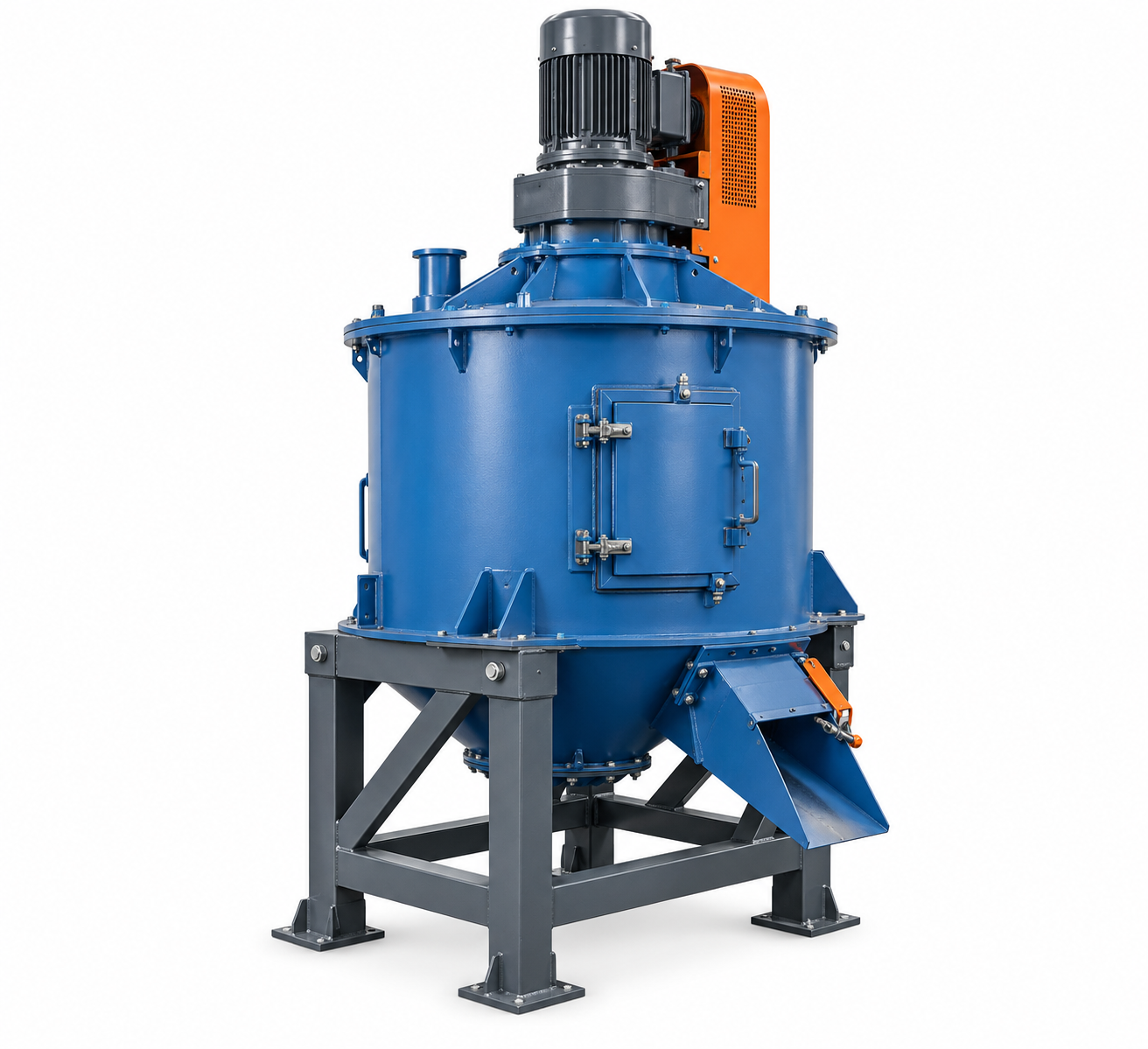

03intensive turbo mixerINTENSIVE TURBO MIXERHigh-speed intensive mixing for demanding sand systems.

INTENSIVE TURBO MIXER

High-energy turbo mixing distributes moisture and additives rapidly throughout the sand, improving consistency while shortening cycle times for automated moulding operations.

  • Intensive Action
  • Short Cycle Time
  • Precise Control

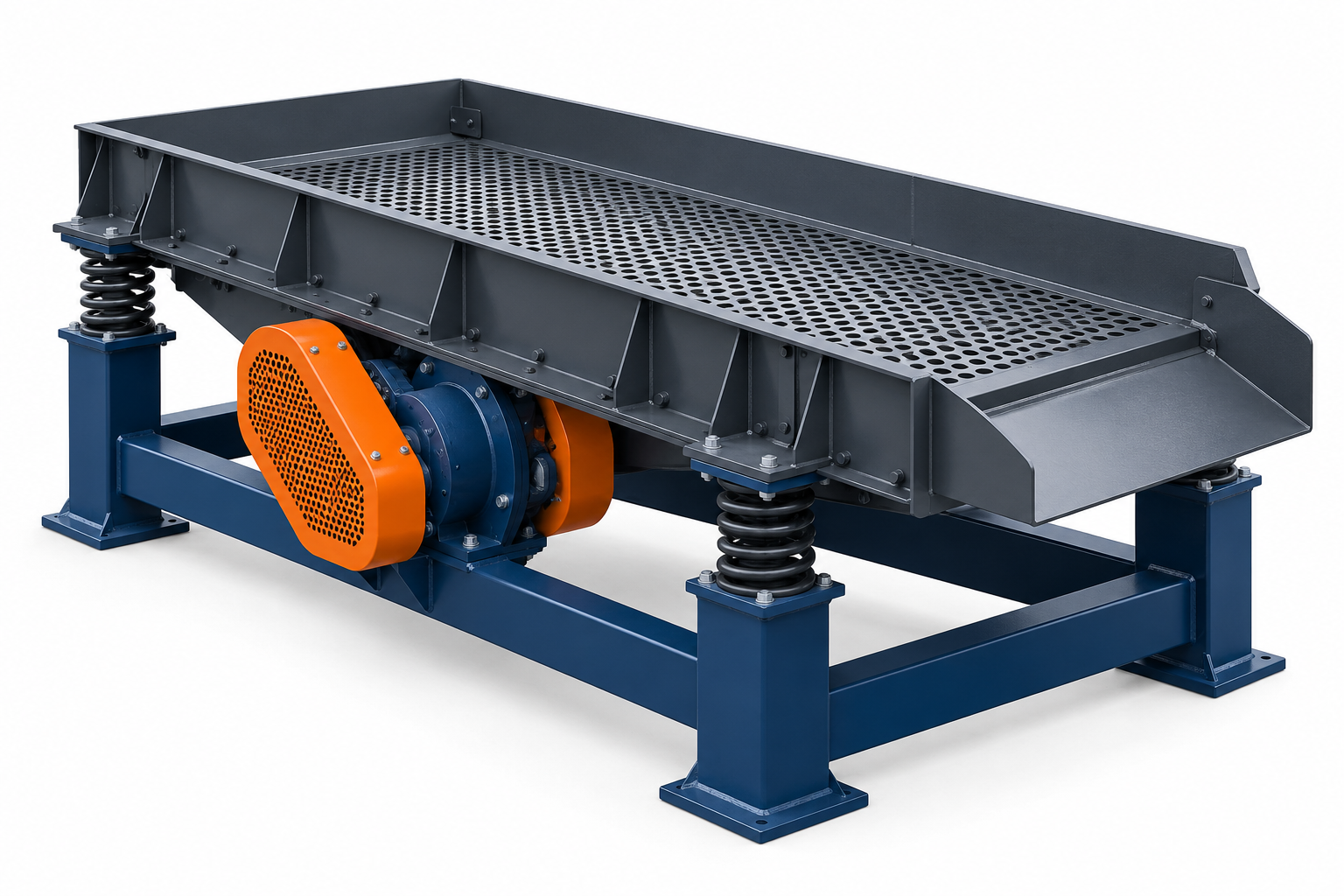

04knockout machineKNOCKOUT MACHINEReliable separation of castings from moulding sand.

KNOCKOUT MACHINE

Heavy-duty vibration breaks down moulds and separates castings from return sand efficiently, with rugged construction suited to continuous foundry duty.

  • Efficient Knockout
  • Heavy Duty
  • Low Maintenance

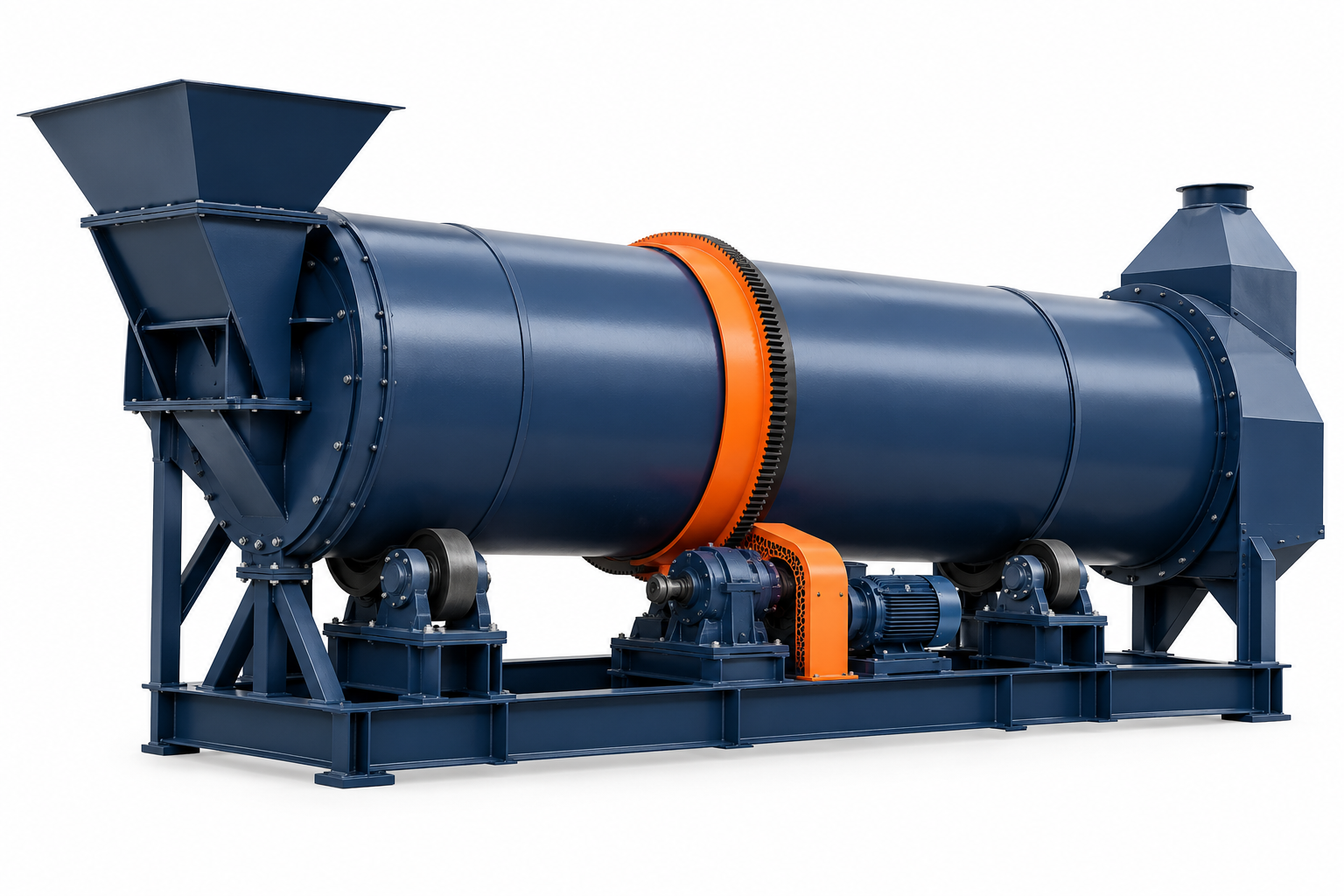

05rotary sand dryerROTARY SAND DRYERUniform moisture reduction for foundry sand.

ROTARY SAND DRYER

A rotating drum and optimized hot-air flow dry sand continuously and evenly, delivering stable final moisture for reclamation and mould preparation.

  • Uniform Drying
  • High Throughput
  • Energy Efficient

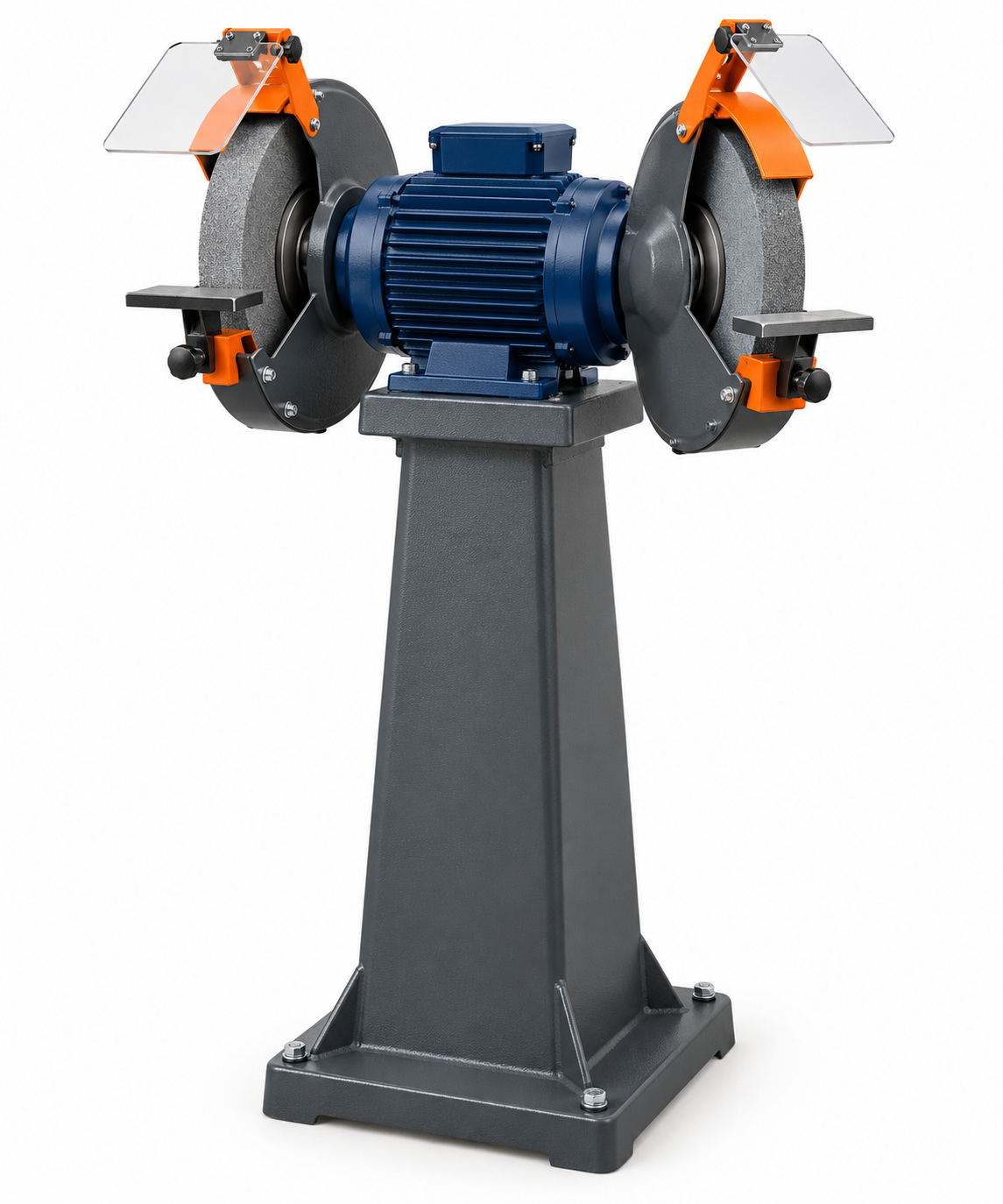

06pedestal grinderPEDESTAL GRINDERSafe fettling and finishing of cast components.

PEDESTAL GRINDER

A rigid floor-mounted grinder provides stable, accessible removal of fins, gates and surface irregularities from a wide range of castings.

  • Stable Grinding
  • Operator Friendly
  • Rugged Build

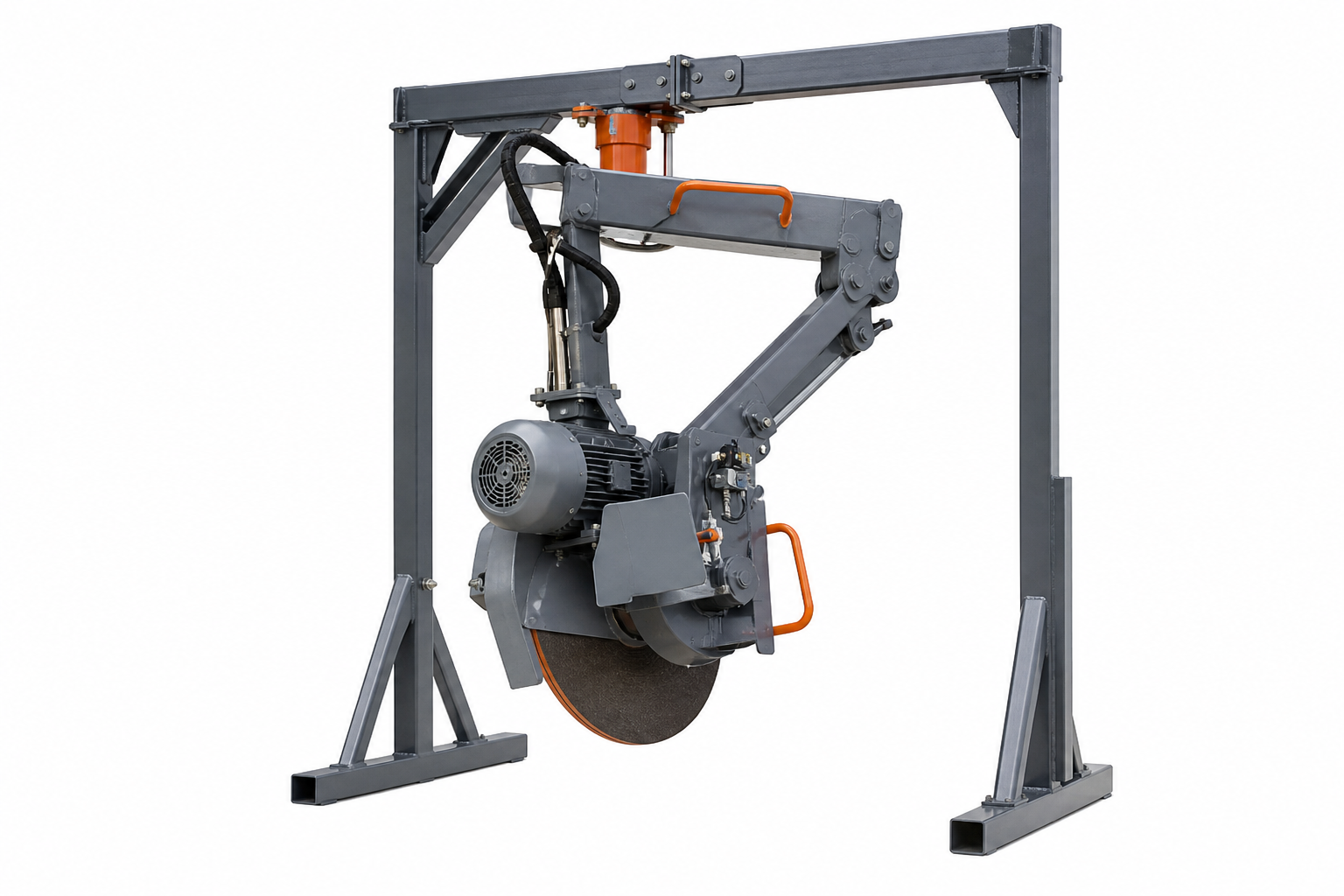

07swing frame grinderSWING FRAME GRINDERFlexible heavy grinding for large castings.

SWING FRAME GRINDER

The suspended swing-frame design lets operators position a powerful grinding wheel over large and irregular castings for efficient fettling.

  • Flexible Reach
  • Heavy Grinding
  • Balanced Handling

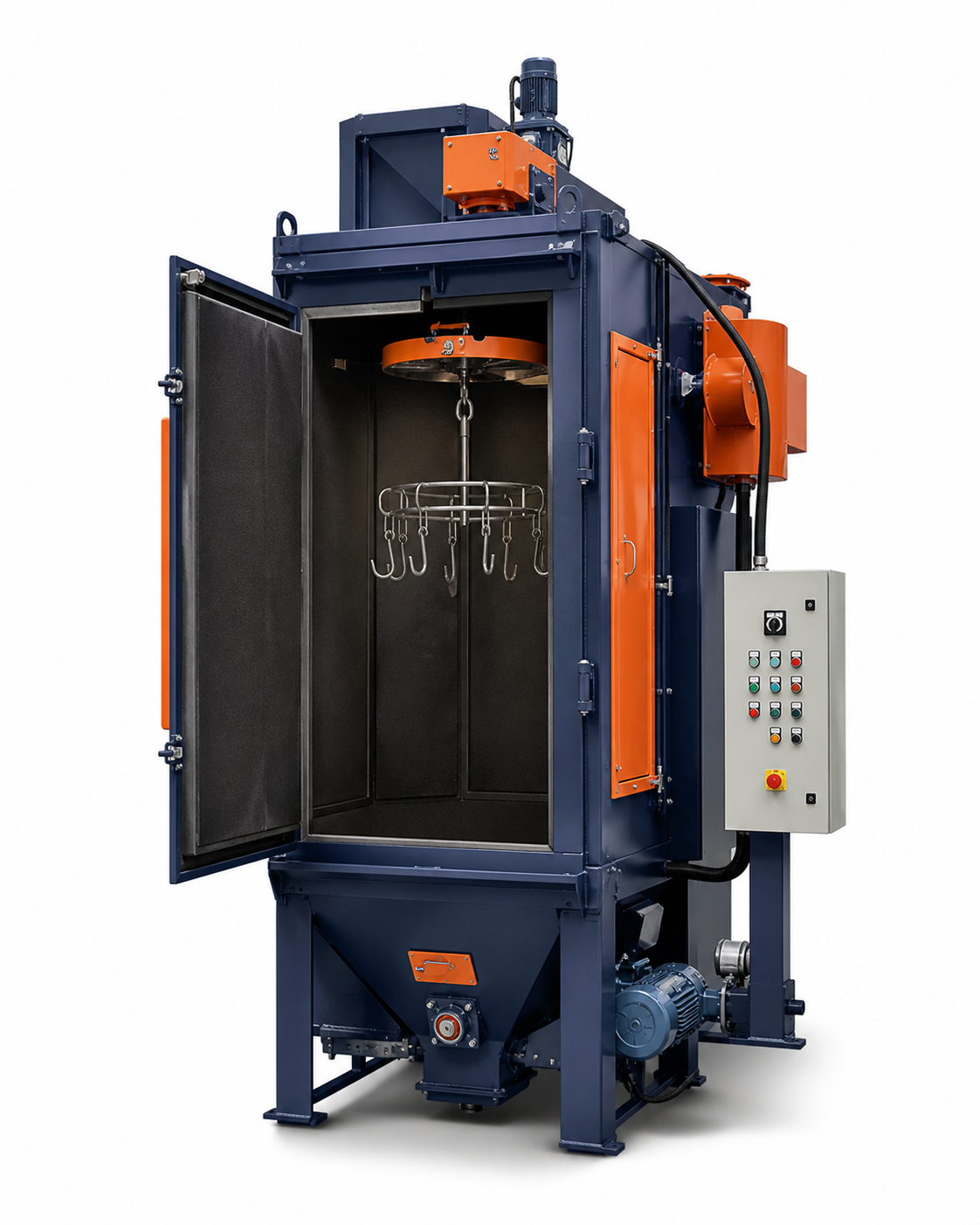

08hanger type shot blasting machineHANGER TYPE SHOT BLASTING MACHINEAll-round blast cleaning for complex suspended castings.

HANGER TYPE SHOT BLASTING MACHINE

Rotating overhead hangers expose complex components to the blast stream for thorough descaling, deburring and surface preparation without tumbling damage.

  • 360° Cleaning
  • Gentle Handling
  • Consistent Finish

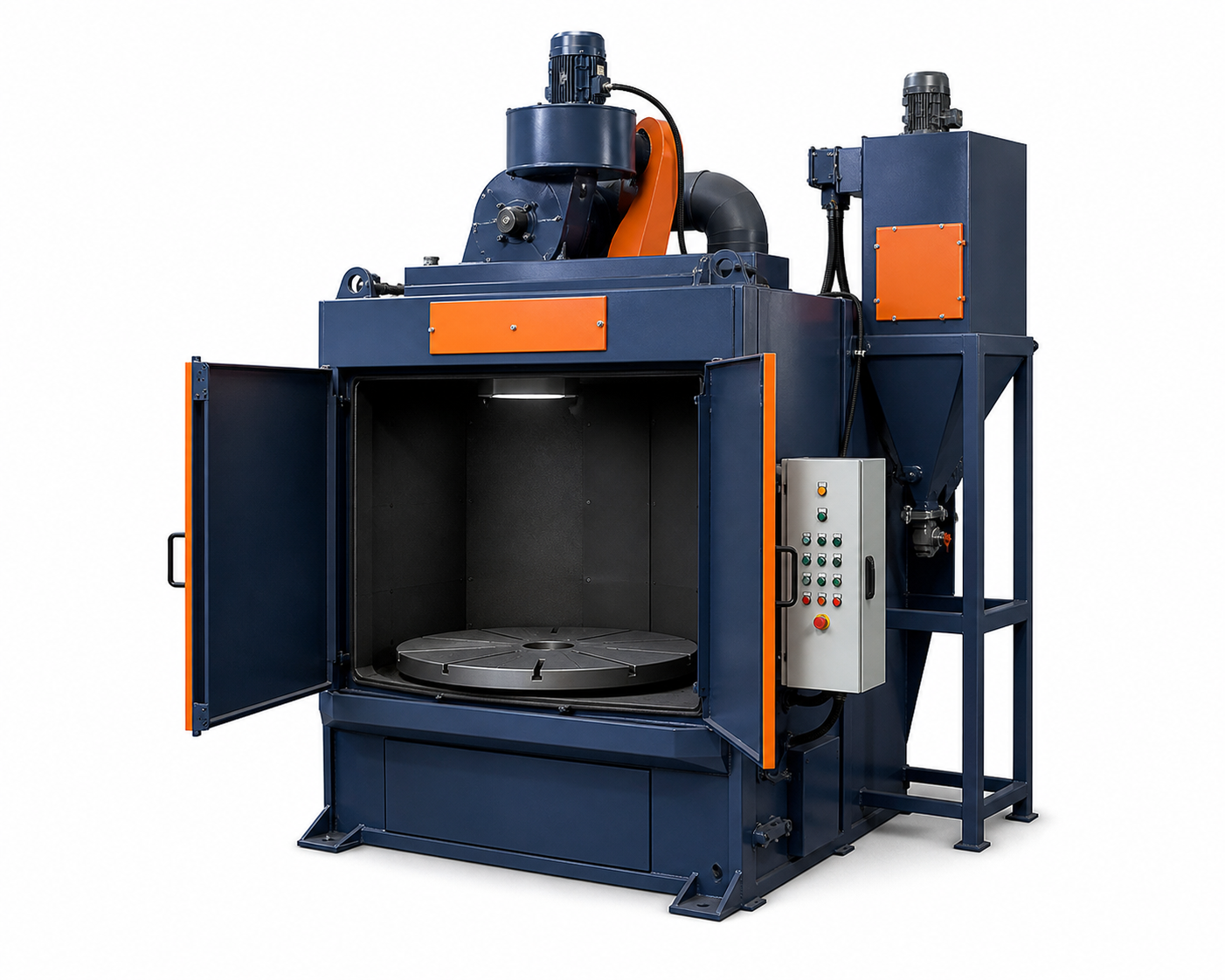

09table type shot blasting machineTABLE TYPE SHOT BLASTING MACHINEControlled blast cleaning on a rotating work table.

TABLE TYPE SHOT BLASTING MACHINE

A rotating table presents heavy or delicate components uniformly to the blast wheel, ensuring comprehensive surface cleaning in a compact enclosure.

  • Rotating Table
  • Uniform Exposure
  • Compact Design

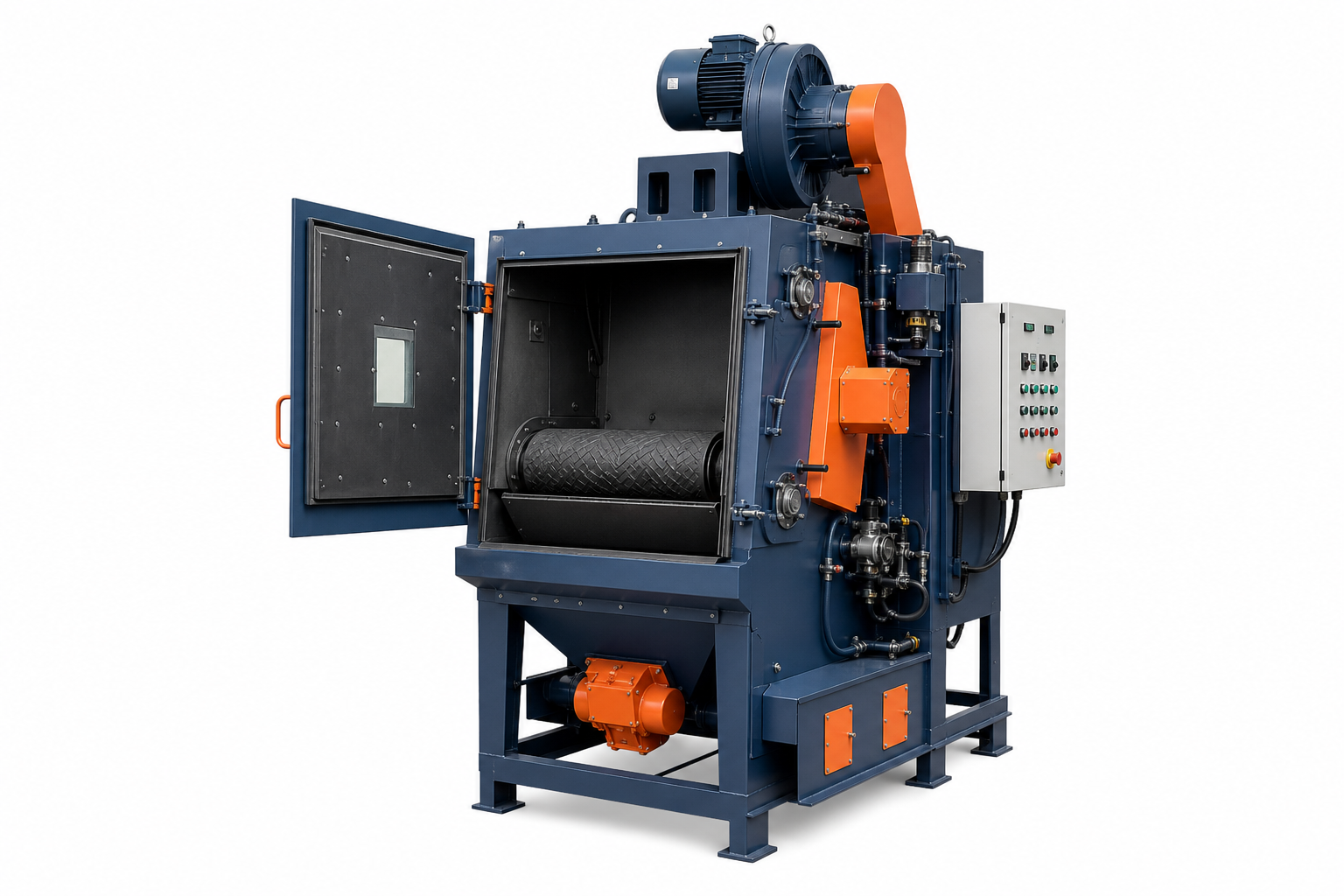

10tumblast shot blasting machineTUMBLAST SHOT BLASTING MACHINEBatch cleaning of small and medium durable castings.

TUMBLAST SHOT BLASTING MACHINE

A continuous tumble belt turns batches through the abrasive stream for efficient removal of sand, scale and surface contamination.

  • Batch Efficiency
  • Complete Coverage
  • Fast Cleaning

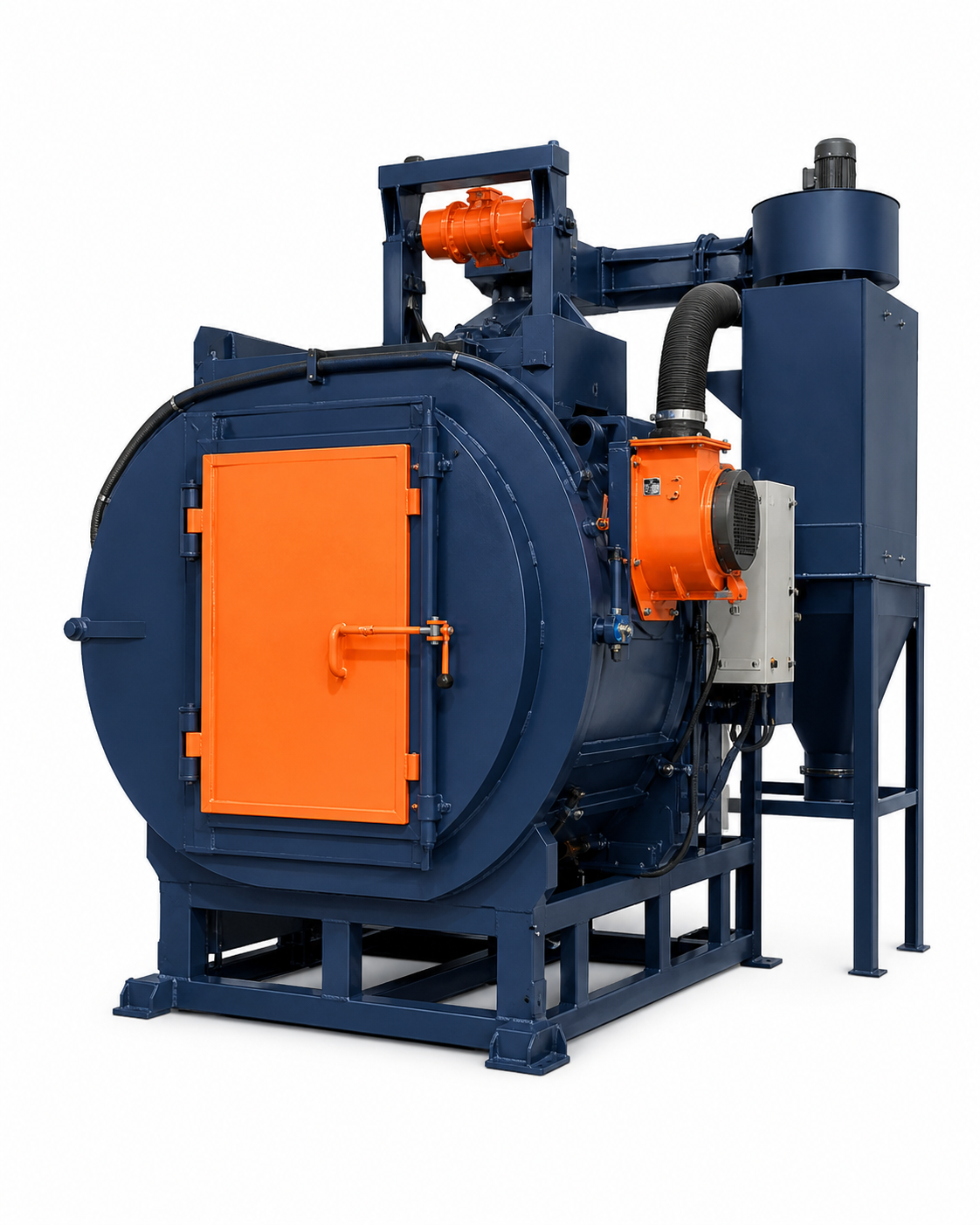

11drum type shot blasting machineDRUM TYPE SHOT BLASTING MACHINERobust batch blasting inside a rotating drum.

DRUM TYPE SHOT BLASTING MACHINE

The rotating drum continuously presents components to the blast stream, providing reliable cleaning for tough, tumble-safe foundry parts.

  • Heavy Duty
  • Thorough Cleaning
  • Simple Loading

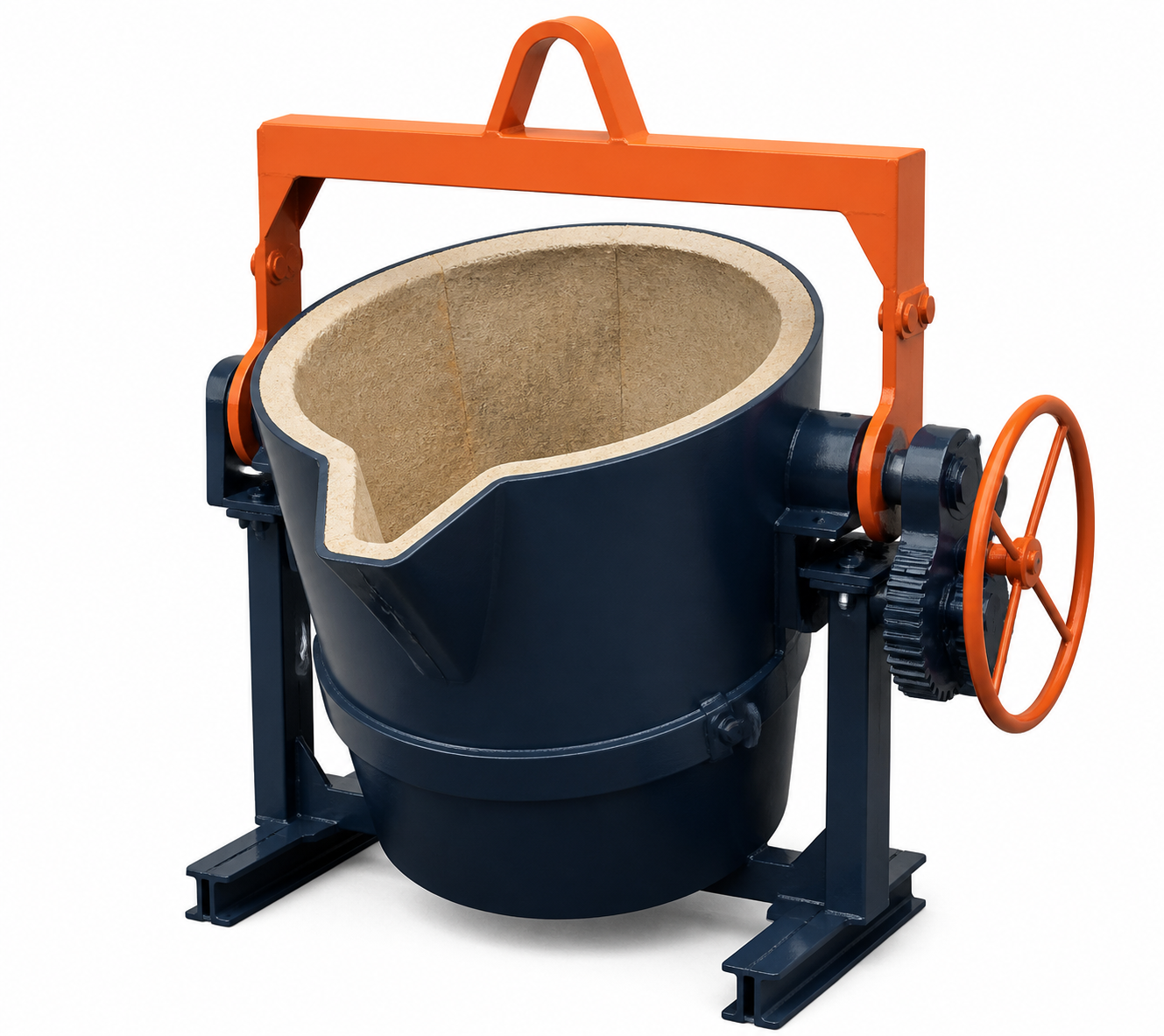

12lip pouring ladleLIP POURING LADLEControlled molten-metal pouring through a formed lip.

LIP POURING LADLE

A refractory-lined vessel with geared tilting provides stable handling and accurate lip pouring for moulds of varying sizes.

  • Controlled Pouring
  • Heat Resistant
  • Safe Tilting

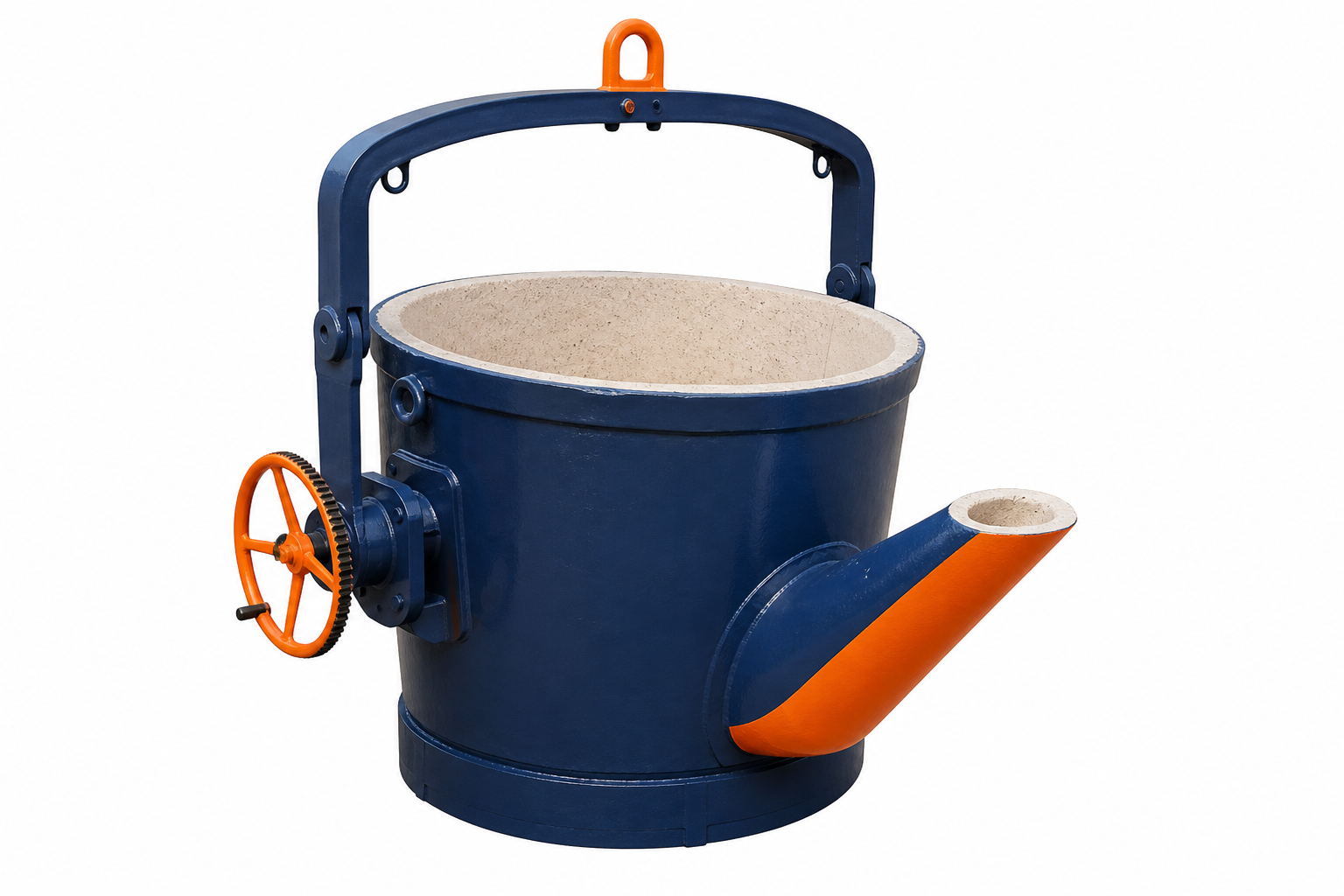

13tea spout ladleTEA SPOUT LADLEClean directional pouring through a teapot-style spout.

TEA SPOUT LADLE

The extended spout draws cleaner metal from below the surface and enables controlled transfer with reduced slag carryover.

  • Cleaner Metal
  • Accurate Stream
  • Reduced Slag

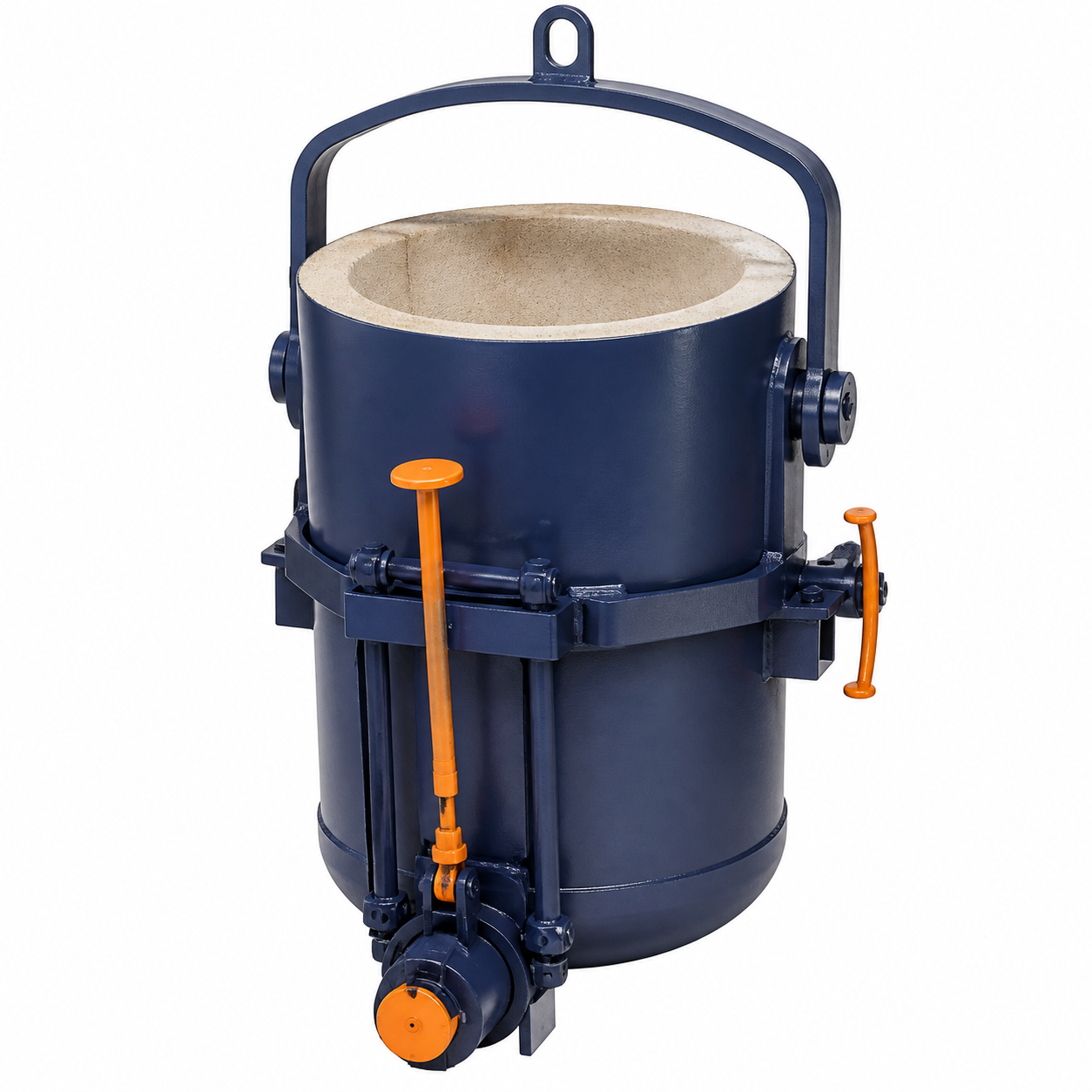

14bottom pouring ladleBOTTOM POURING LADLELow-turbulence metal delivery from the ladle bottom.

BOTTOM POURING LADLE

A stopper-controlled bottom nozzle delivers cleaner molten metal with reduced oxidation and turbulence during mould filling.

  • Low Turbulence
  • Clean Pour
  • Precise Control

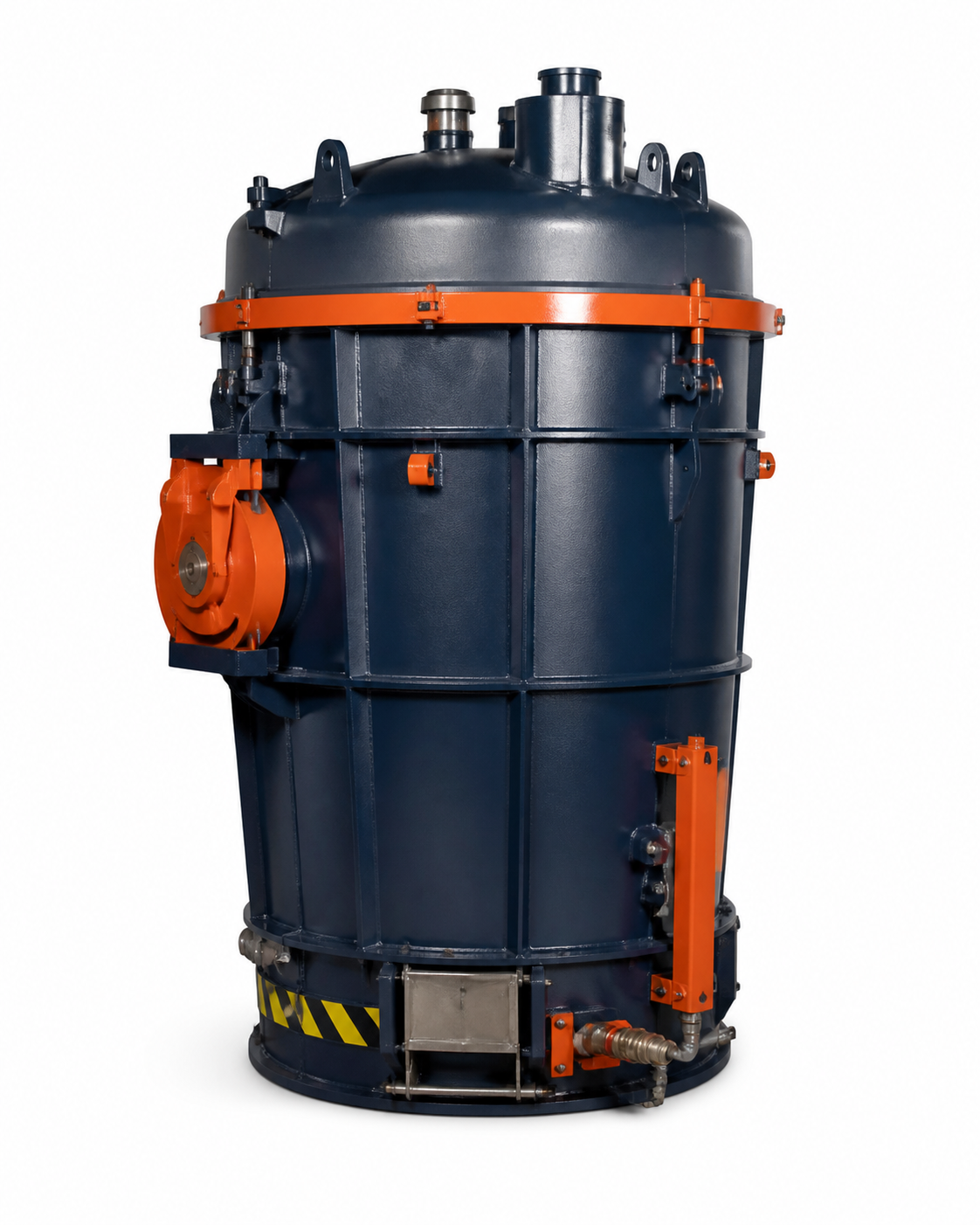

15treatment ladleTREATMENT LADLEPurpose-built containment for metallurgical treatment.

TREATMENT LADLE

A reinforced refractory-lined ladle supports alloying, inoculation and other melt-treatment processes while retaining temperature and ensuring safe handling.

  • Process Ready
  • Thermal Efficiency
  • Rugged Shell

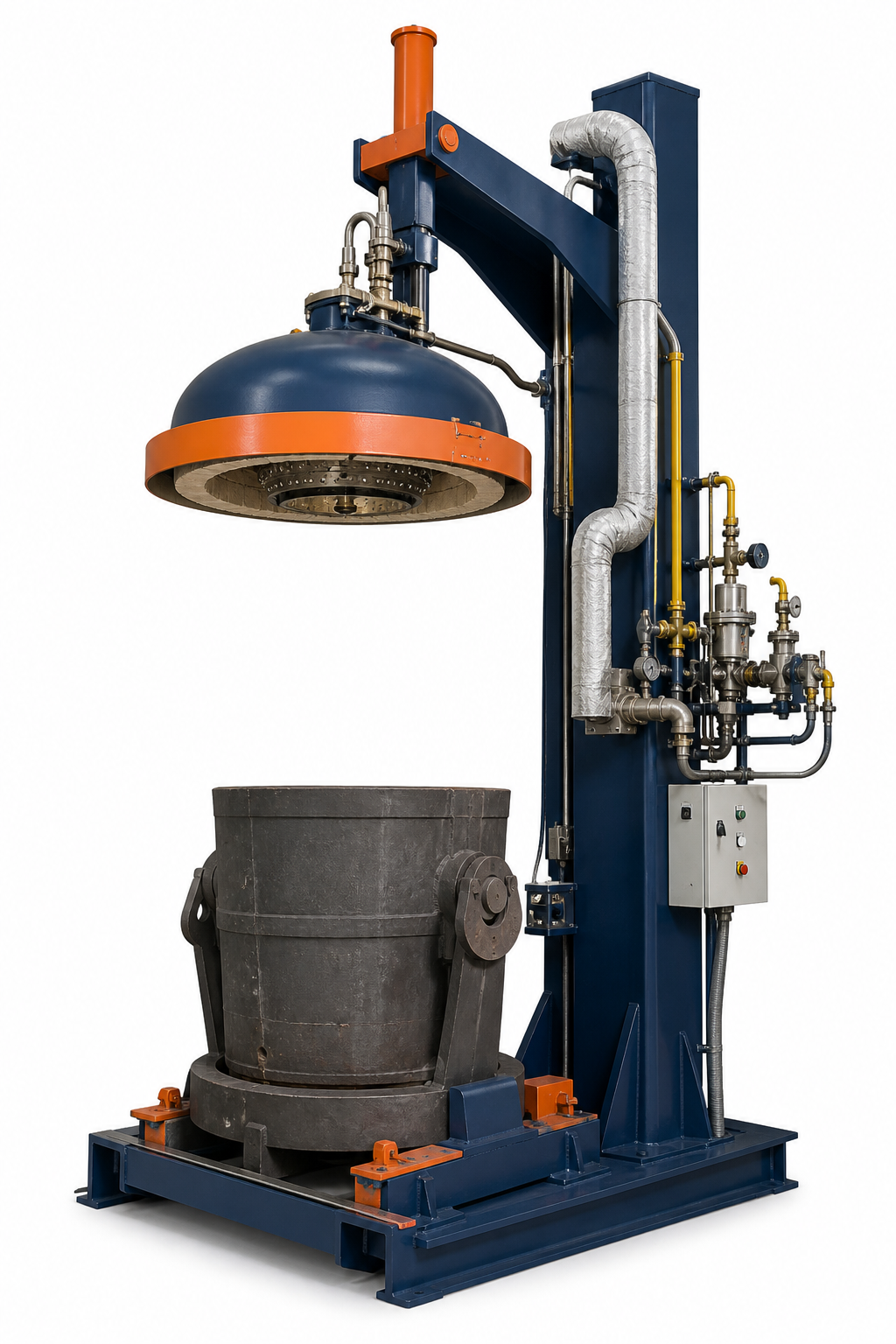

16ladle pre heaterLADLE PRE HEATEREfficient and uniform preheating of foundry ladles.

LADLE PRE HEATER

A controlled burner system removes moisture and raises refractory temperature before metal transfer, improving safety and reducing thermal shock.

  • Uniform Heating
  • Fuel Efficient
  • Improved Safety

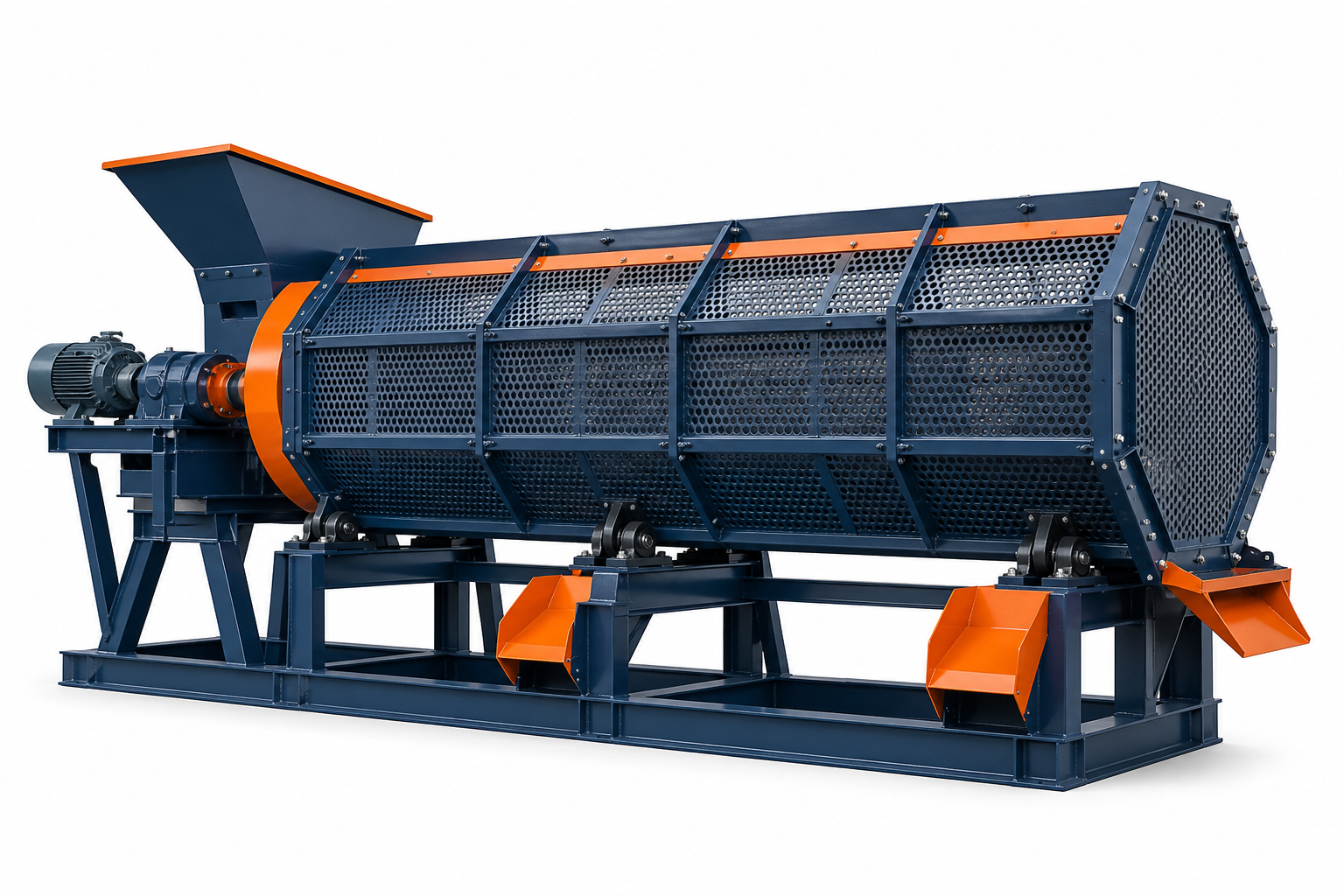

17polygonal sieverPOLYGONAL SIEVERContinuous screening and separation of return sand.

POLYGONAL SIEVER

A rotating polygonal screen breaks lumps and separates unwanted particles to prepare reclaimed sand for downstream processing.

  • Effective Screening
  • Continuous Duty
  • Low Maintenance

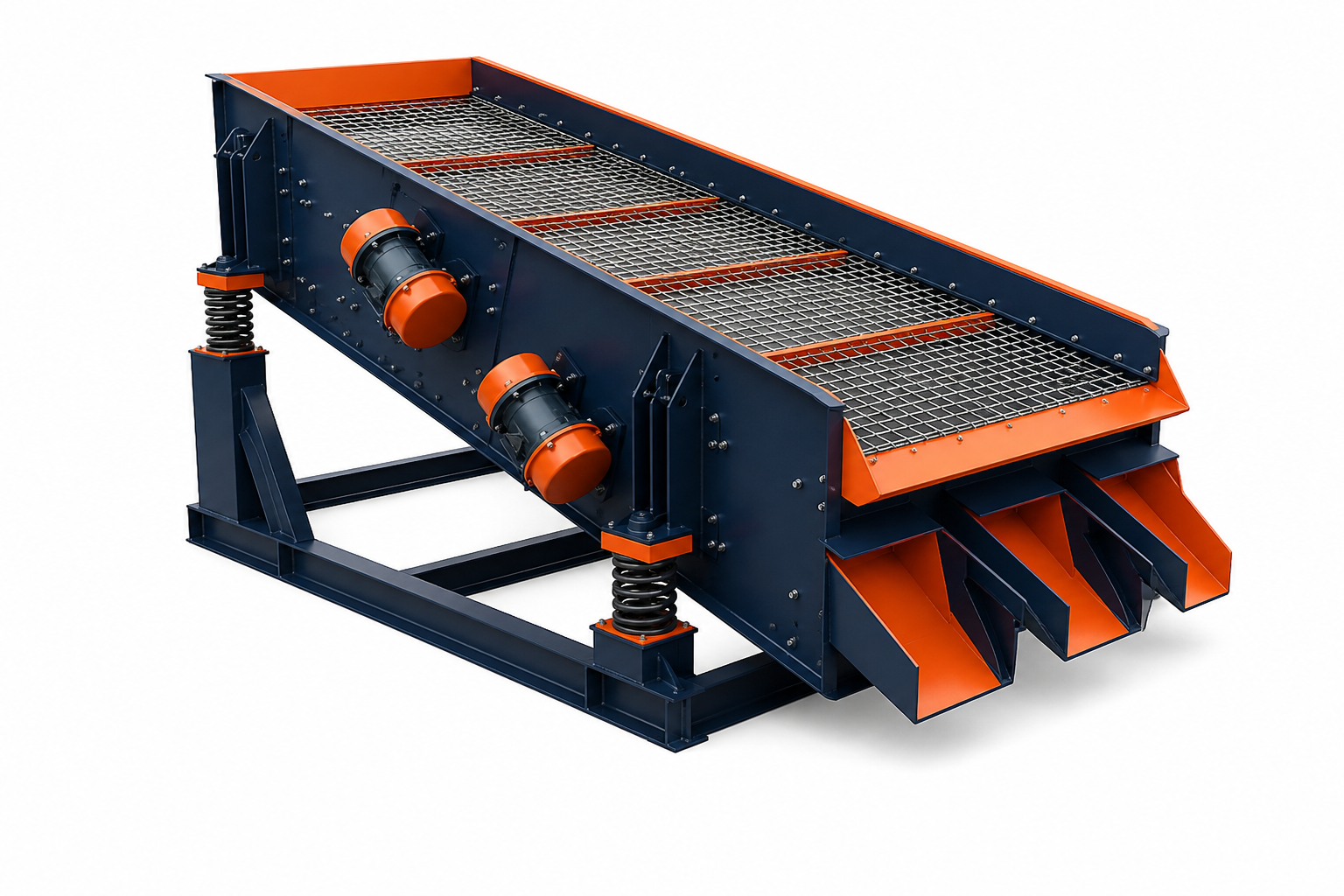

18vibratory screenVIBRATORY SCREENPrecise grading and separation of foundry materials.

VIBRATORY SCREEN

Controlled vibration moves sand across selected screen media to separate oversize particles and deliver uniform material grading.

  • Accurate Grading
  • High Capacity
  • Easy Service

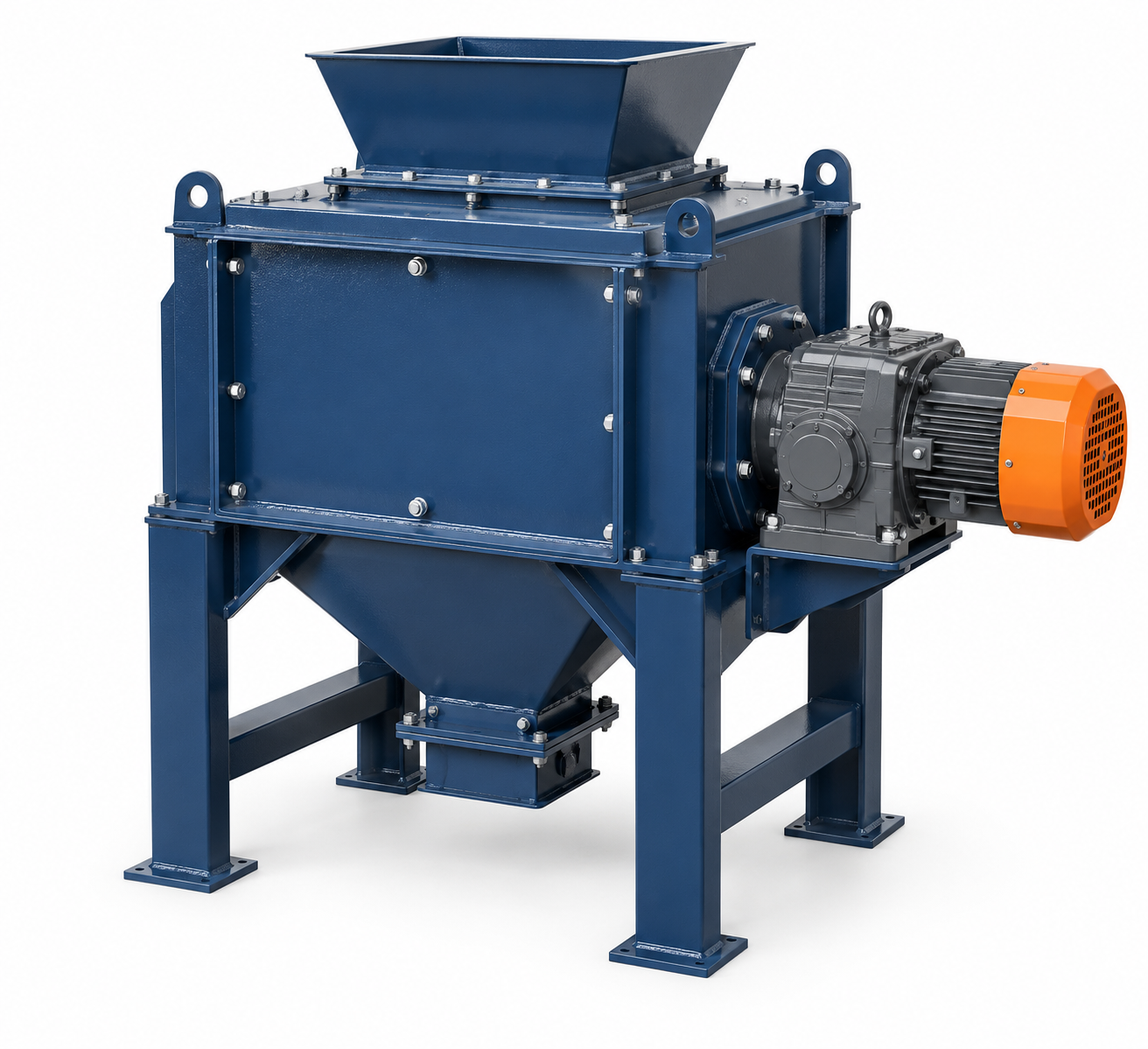

19inline aeratorINLINE AERATORContinuous aeration and loosening of prepared sand.

INLINE AERATOR

High-speed internal action fluffs compacted sand in the process line, improving flowability, mould filling and consistency without interrupting production.

  • Better Flowability
  • Inline Operation
  • Uniform Aeration

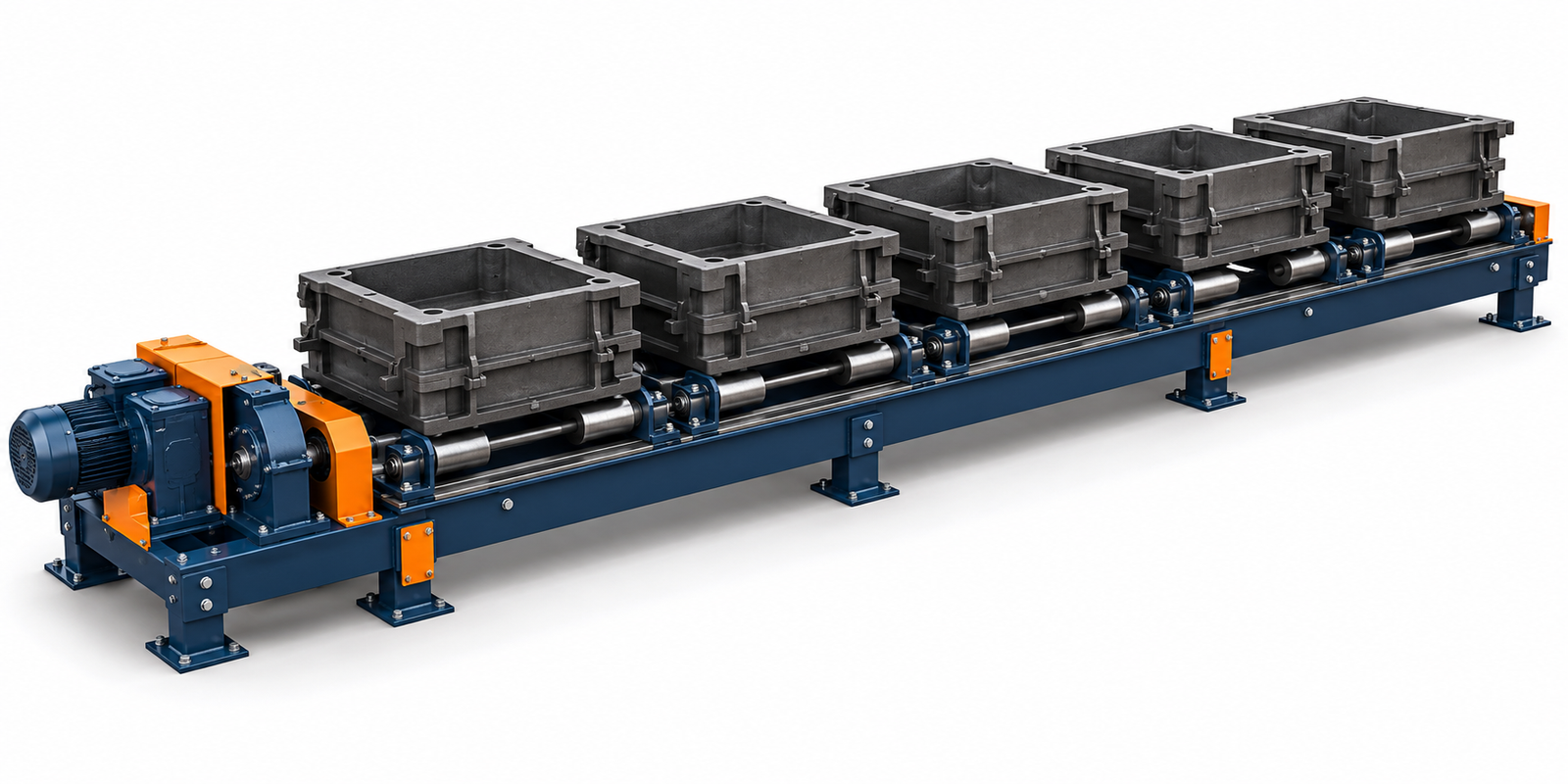

20mould track lineMOULD TRACK LINEOrganized movement of moulds through production stages.

MOULD TRACK LINE

An engineered rail and indexing system coordinates mould transfer, pouring and cooling for smoother workflow and repeatable cycle control.

  • Controlled Movement
  • Modular Layout
  • Higher Productivity

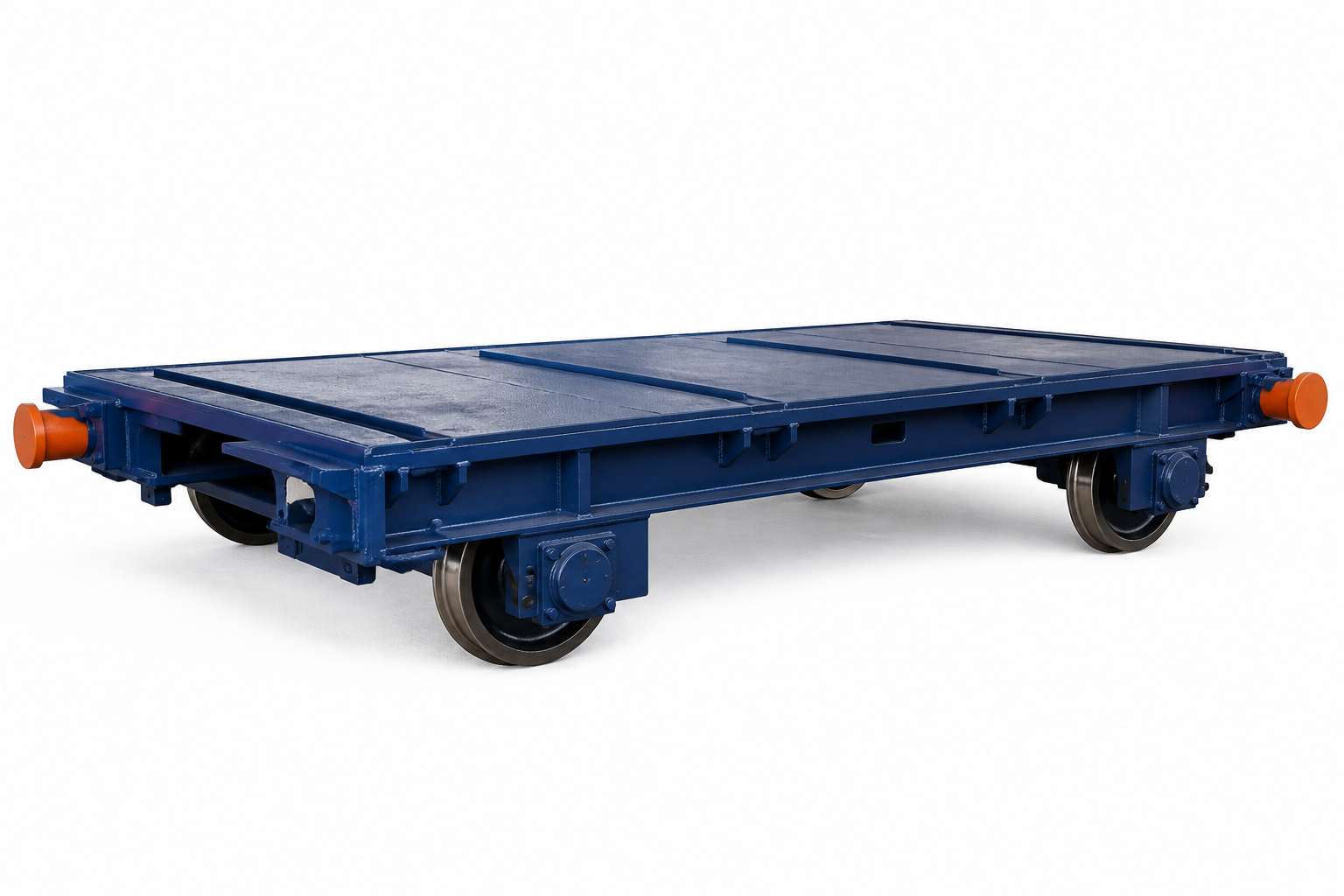

21moulding carMOULDING CARRugged rail transport for moulds and foundry loads.

MOULDING CAR

A reinforced, low-profile car carries moulds securely between preparation, pouring and cooling stations under demanding operating conditions.

  • Heavy Load Capacity
  • Stable Travel
  • Long Service Life

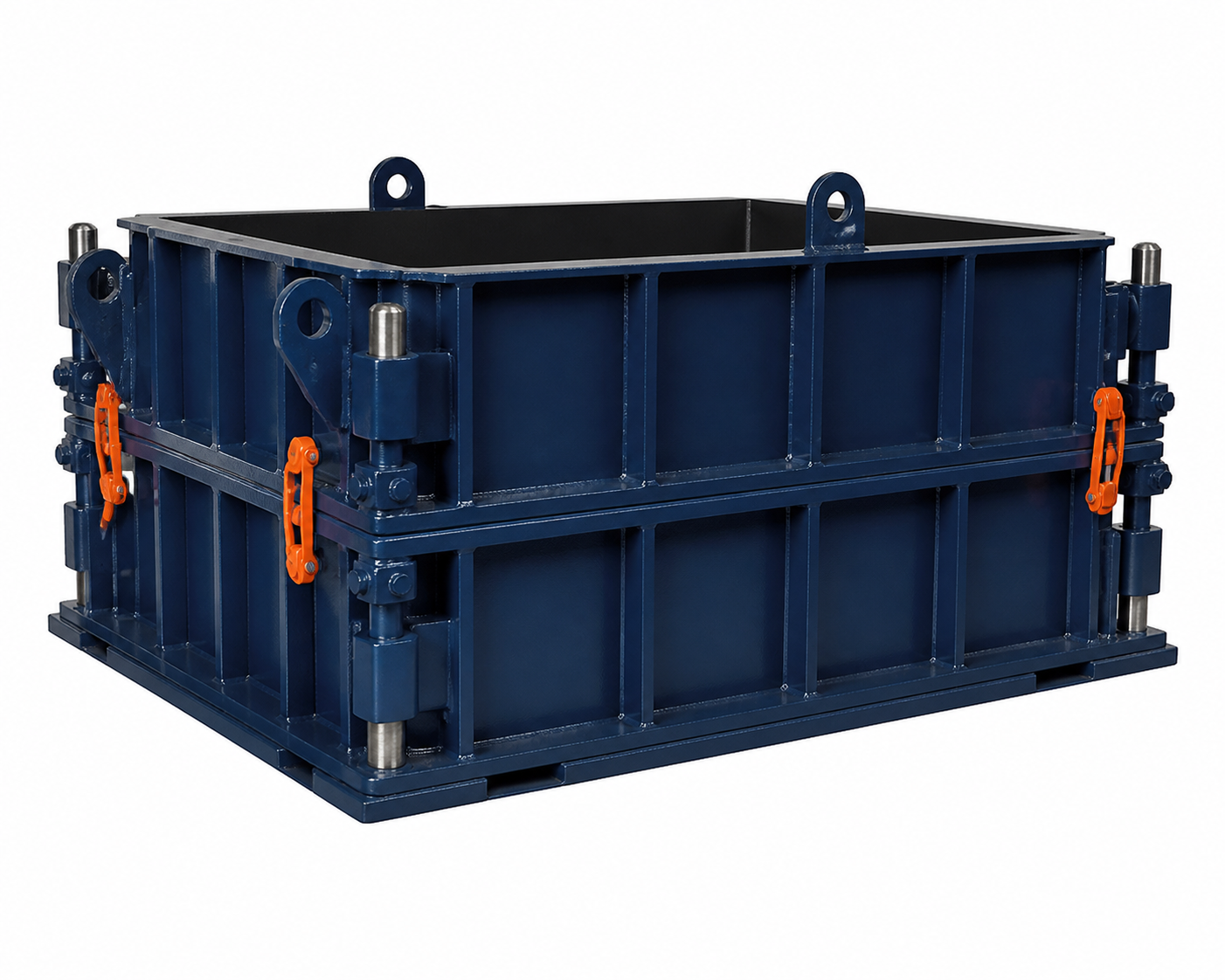

22moulding boxMOULDING BOXAccurate flask alignment for consistent mould production.

MOULDING BOX

Precisely fabricated cope-and-drag boxes provide rigidity, repeatable alignment and dependable dimensional control during mould preparation and pouring.

  • Precise Alignment
  • Rigid Construction
  • Reusable Design

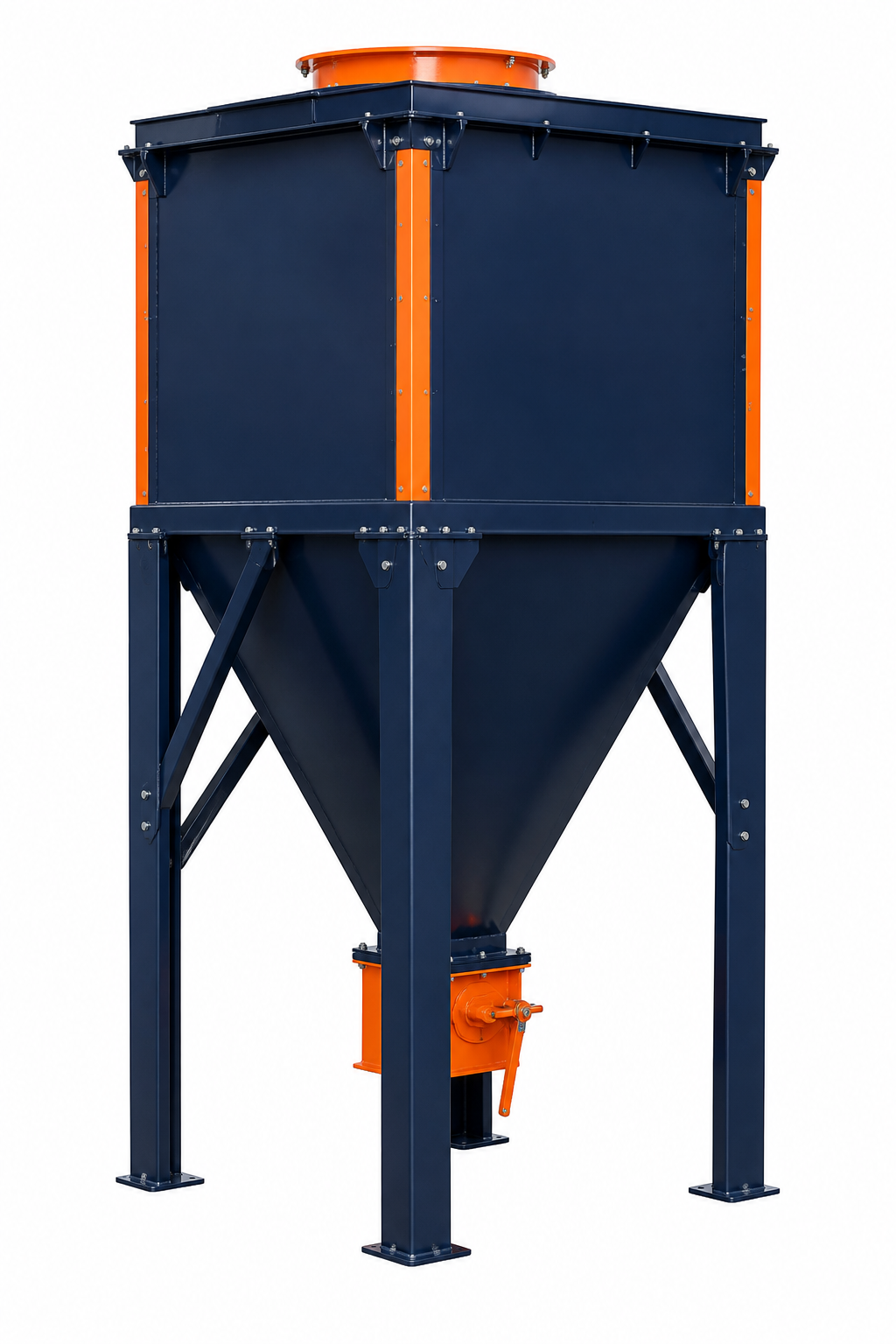

23sand storage hopperSAND STORAGE HOPPERReliable buffer storage and controlled sand discharge.

SAND STORAGE HOPPER

A reinforced hopper stores prepared or return sand and feeds downstream equipment through a controlled bottom outlet for uninterrupted production.

  • Controlled Discharge
  • High Capacity
  • Rugged Construction

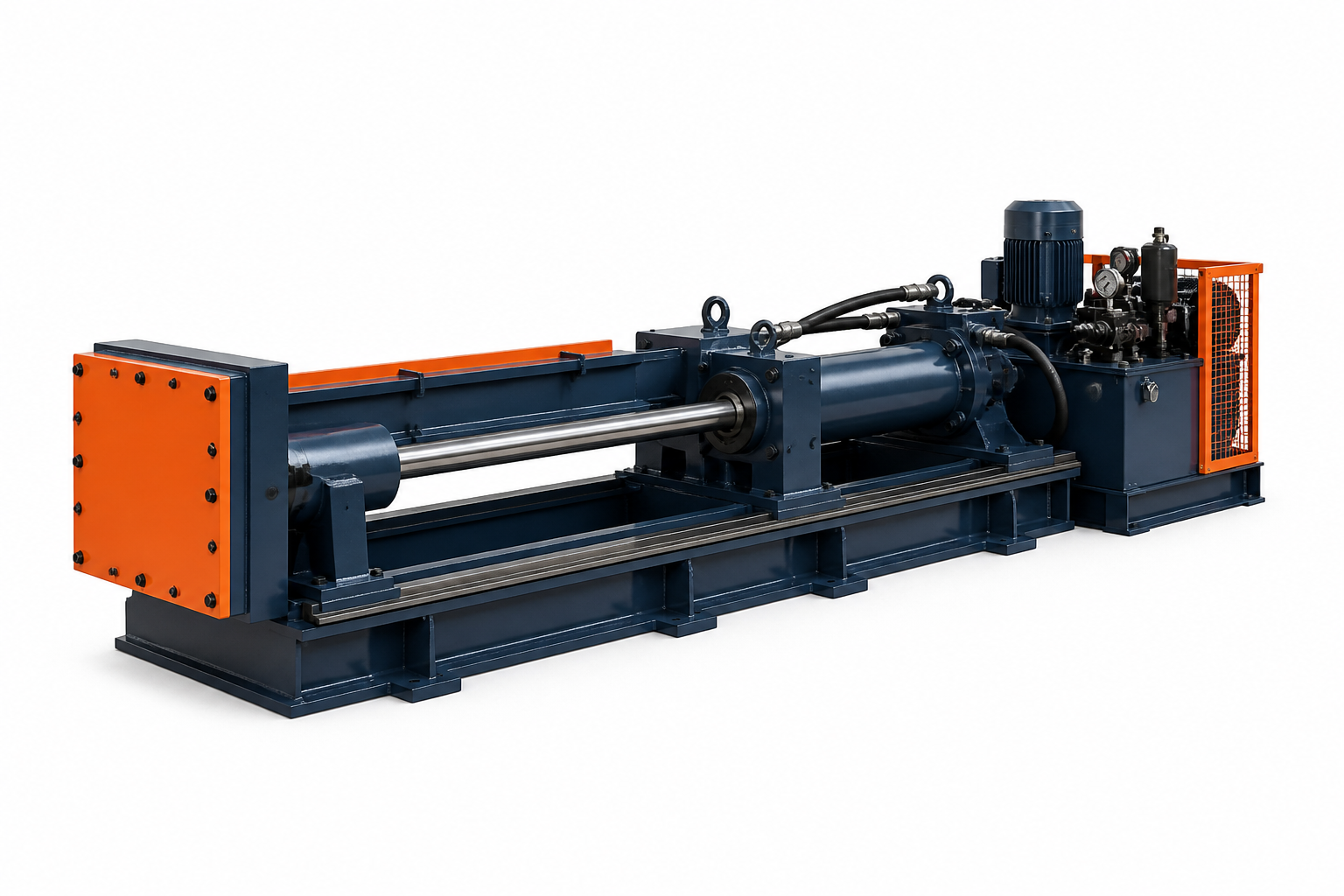

24mould car pusherMOULD CAR PUSHERPositive indexed movement of mould cars along the line.

MOULD CAR PUSHER

A guided hydraulic ram advances loaded mould cars smoothly and accurately between production stations, supporting repeatable cycle timing.

  • Accurate Indexing
  • Powerful Push
  • Reliable Operation

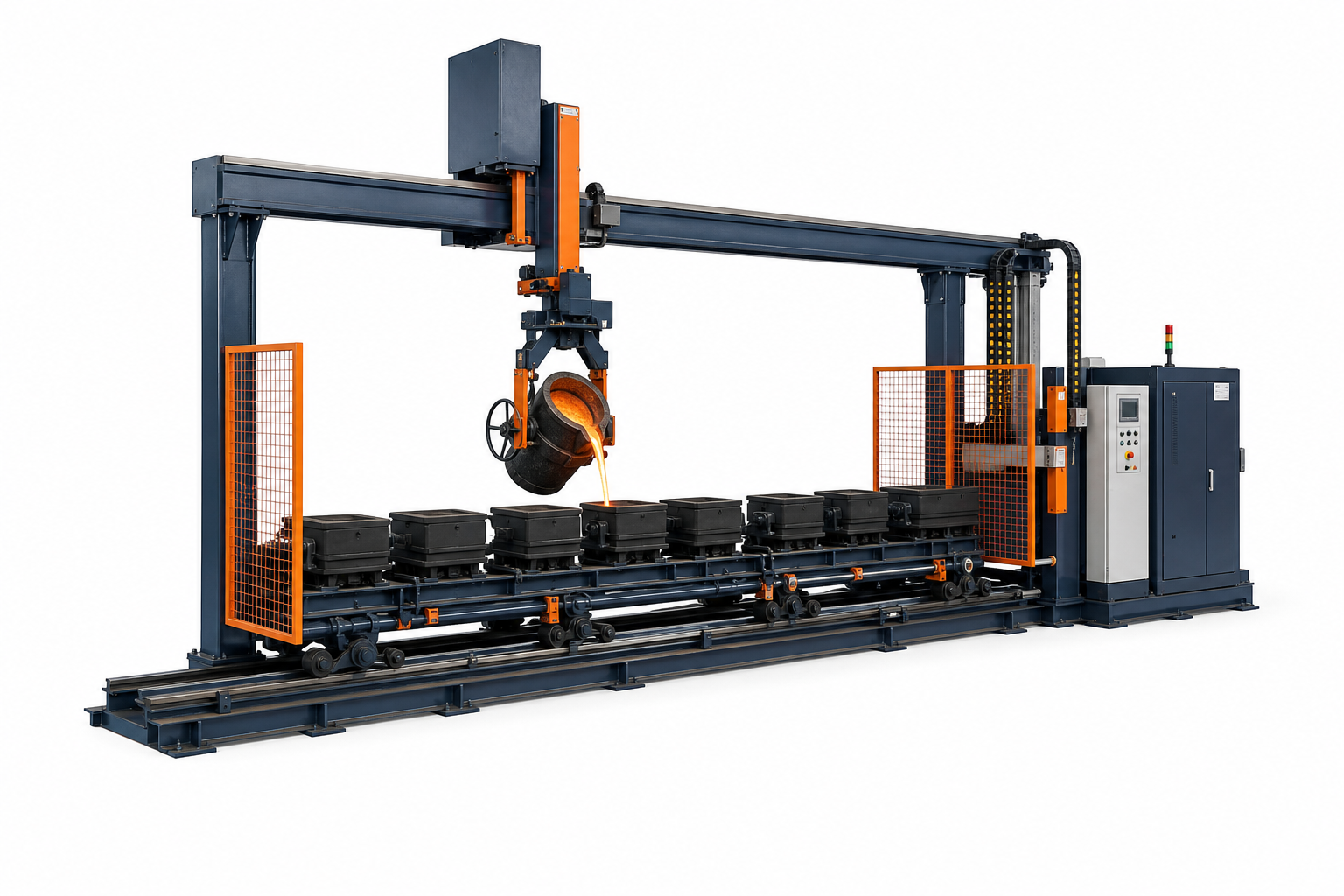

25metal pouring lineMETAL POURING LINECoordinated molten-metal delivery across mould stations.

METAL POURING LINE

An integrated guided pouring system synchronizes ladle movement and mould filling for consistent casting quality, safer operation and higher production rates.

  • Consistent Pouring
  • Process Automation
  • Improved Safety

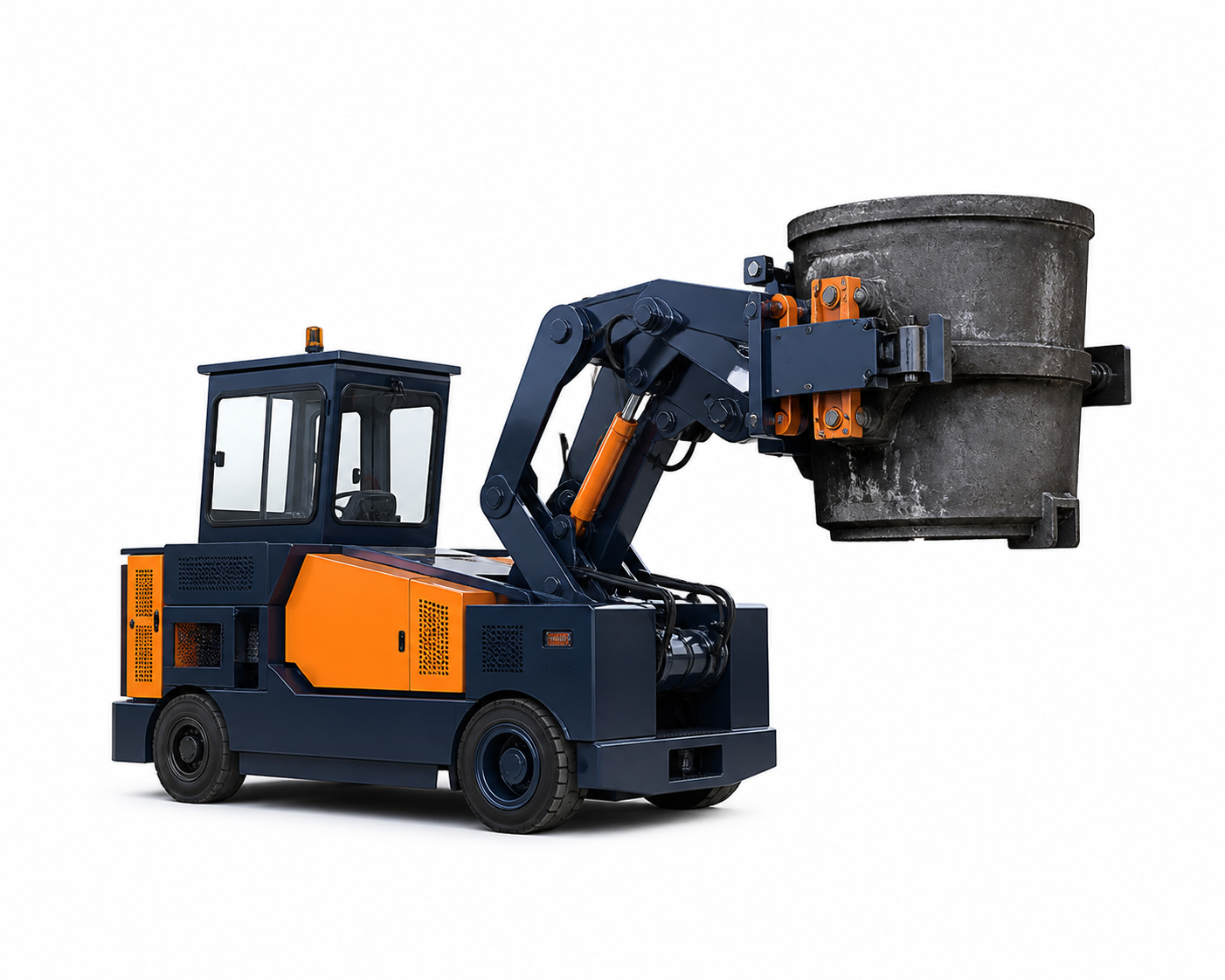

26ladle handlerLADLE HANDLERSecure transport and positioning of molten-metal ladles.

LADLE HANDLER

A purpose-built handling vehicle grips, lifts and positions ladles with controlled movement, reducing operator exposure during metal transfer and pouring.

  • Secure Handling
  • Precise Positioning
  • Safer Transfer

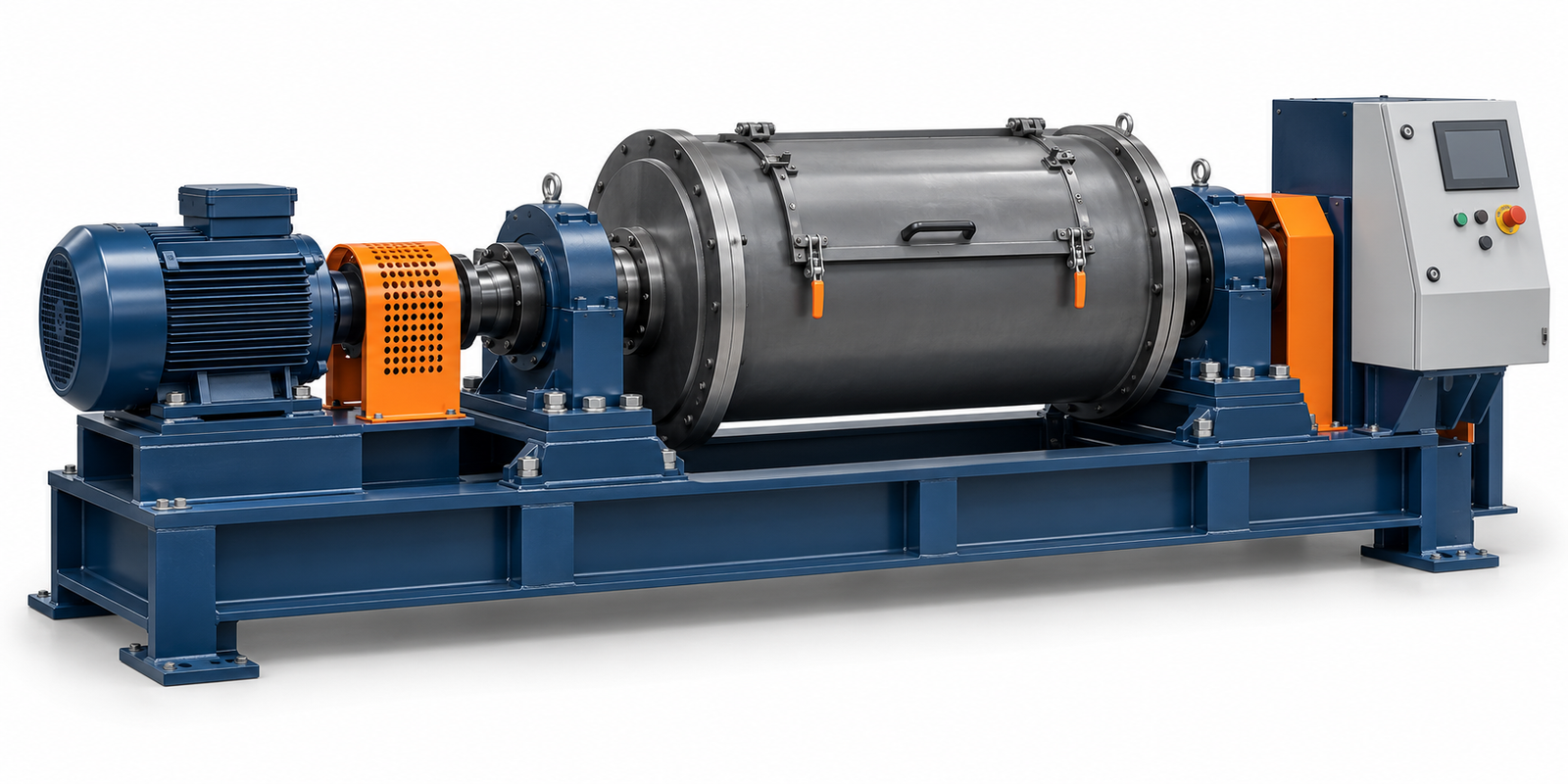

27centrifugal casting machineCENTRIFUGAL CASTING MACHINEPrecision rotational casting for dense cylindrical components.

CENTRIFUGAL CASTING MACHINE

A controlled high-speed spindle rotates the mould during pouring, using centrifugal force to create sound, uniform castings with refined structure.

  • Stable Rotation
  • Dense Castings
  • Accurate Control

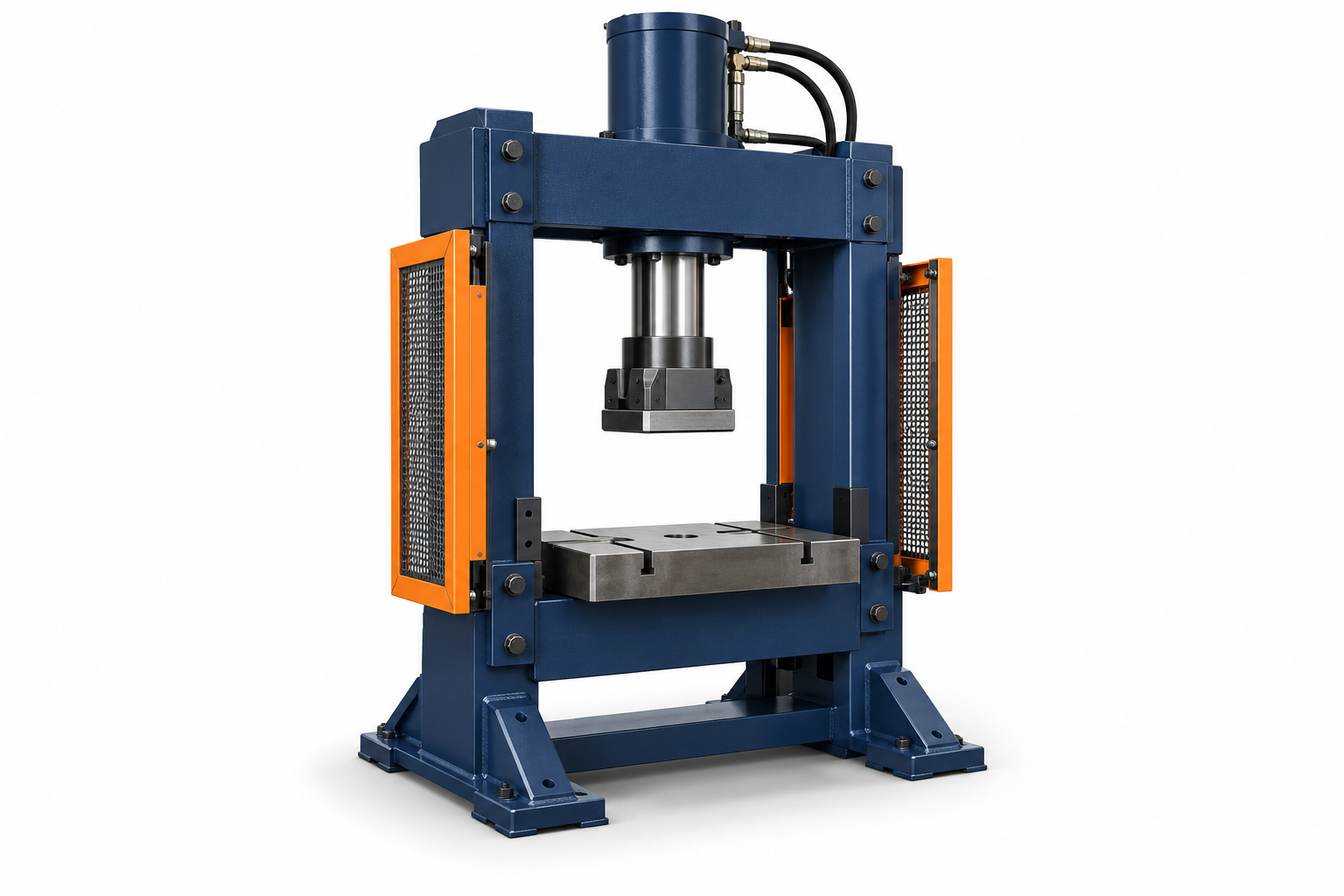

28punchout machinePUNCHOUT MACHINEEfficient removal of moulded parts and residual sand.

PUNCHOUT MACHINE

A guided hydraulic punch applies controlled force to separate mould contents cleanly, improving throughput and reducing manual breakout work.

  • Controlled Force
  • Fast Cycle
  • Robust Frame

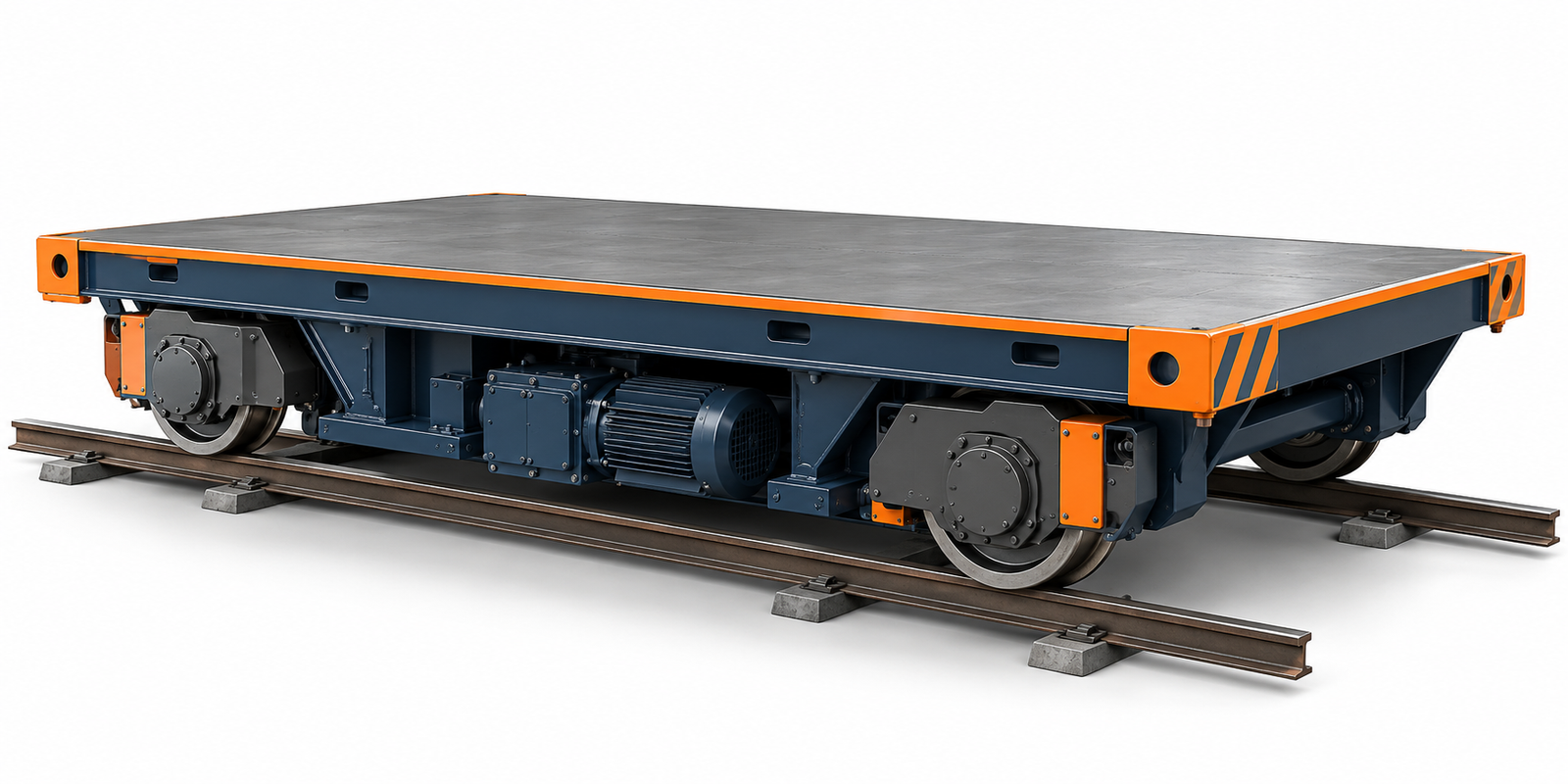

29transfer carTRANSFER CARPowered cross-transfer of heavy foundry loads.

TRANSFER CAR

A rail-guided powered platform moves moulds, ladles or equipment between parallel lines with stable travel and accurate stopping.

  • Heavy Capacity
  • Smooth Travel
  • Precise Positioning

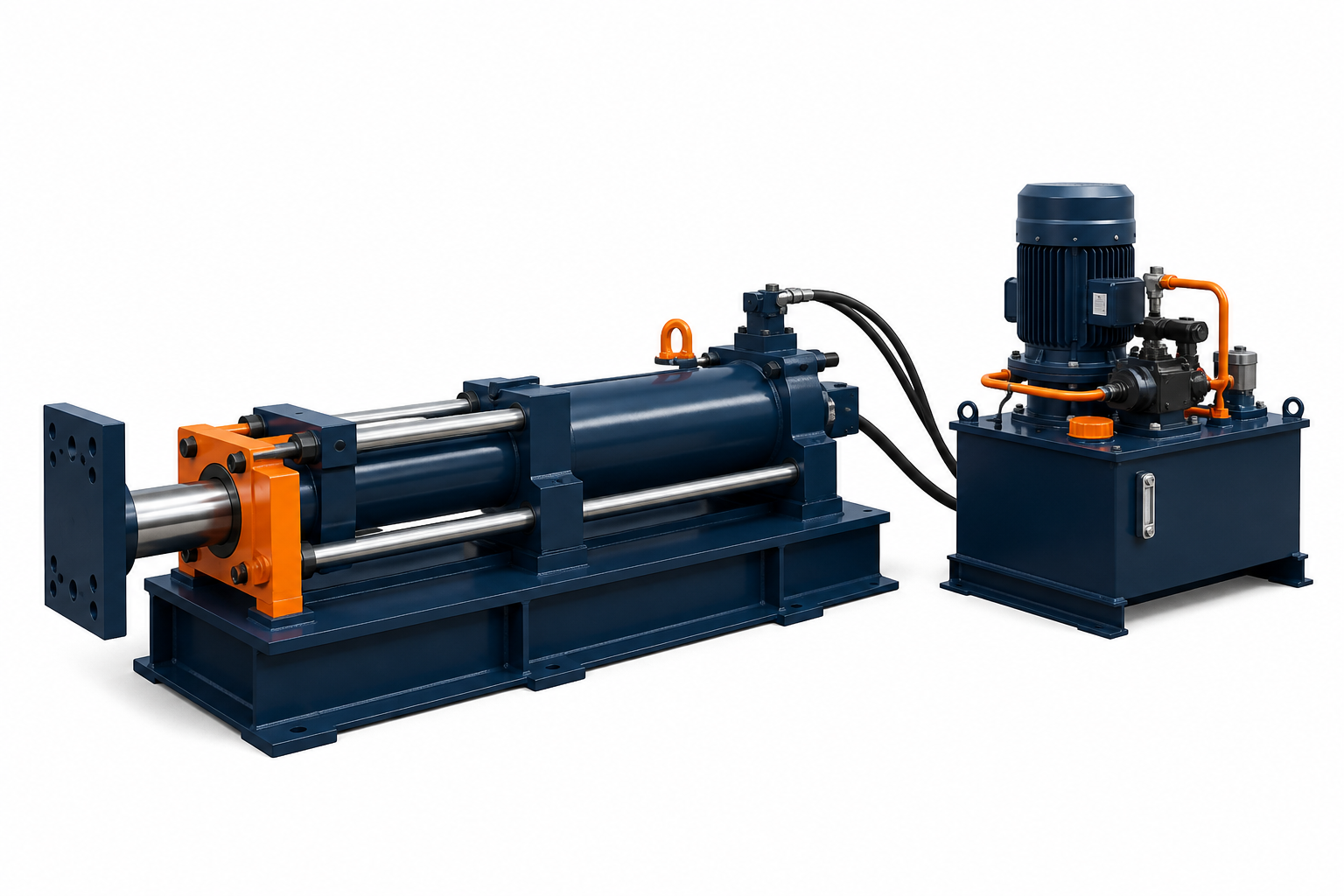

30hydraulic pusherHYDRAULIC PUSHERHigh-force linear movement for foundry process equipment.

HYDRAULIC PUSHER

A rugged hydraulic cylinder and guided ram provide repeatable pushing force for mould lines, transfer systems and other material-handling duties.

  • High Force
  • Accurate Stroke
  • Reliable Hydraulics
